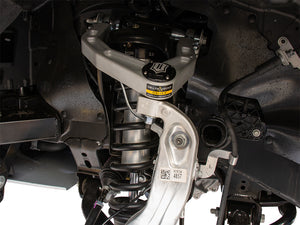

ICON 2019+ Ford Ranger Billet Upper Control Arm Delta Joint Kit

98520DJ Overview
This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2019-2021 Ford Ranger with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. Replacing the OE ball joint with the ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 7/8” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2019-2021 Ford Ranger truck.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
CNC machined 6061 billet aluminum construction for light weight and exceptional strength
Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
Camber and caster adjustability allows for precise wheel alignment
ICON double adjuster sleeves allow for on-vehicle adjustment
Vehicle specific taper pin provides OE-like fitment
PTFE Lined 7/8” FK Rod Ends for improved response
Built in o-ring sealed dust cover cap
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103407449
Proxy Number 98520
Shipping Width 16.00 in
Shipping Length 15.00 in
Shipping Depth 6.00 in
Shipping Weight 25.0000 LB
Technical Notes
TECH NOTE: Compatible with 2019-2021 Rangers equipped with aluminum knuckles only
TECH NOTE: Not compatible with Ranger Raptor
