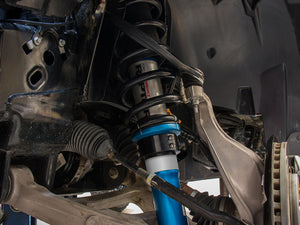

ICON 17-20 Ford Raptor .5-2.25 AAC Leveling Kit

IVD6130B Overview
The ICON Attitude Adjustment Collar (AAC) is an industry first, patent pending multi-height coil spring collar that works in conjunction with a top load shim that can be configured in five unique ways to yield .5” to 2.25” of front lift height over stock. Taking the front end dimensions of the "Gen 2" Raptor into account, the collar and shim design of this leveling system achieves this range of lift height while keeping the OE shock in the ride zone, maintaining factory ride quality. Other options on the market achieve lift height solely through coil preload, which places the shock in the rebound zone at ride height and drastically impacts ride quality and performance. Installation of this leveling system requires no disassembly of the shock, making it a simple and straightforward process as opposed to other options currently available. CNC machined 6061 billet aluminum construction and a black anodized finish mean this product can stand up to the test of time in the harshest on and off-road conditions. Backed by ICON’s limited lifetime warranty, the ICON Vehicle Dynamics Attitude Adjustment Collar is the best leveling solution on the market for the 2017-2020 Ford Raptor.
Staying true to the ICON Alloys approach, the 17” Thrust has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality. The ICON Alloys Thrust has also been strength tested to yield a 2,750lb load rating - making it one of the strongest wheel options on the market! With build features such as these, it's clear that a set of ICON Alloys Thrust wheels is the perfect complement to an ICON Vehicle Dynamics suspension system.
During an accelerated R&D process ICON engineers subjected the Rebound PRO to thousands of miles of real-world abuse throughout harsh and unforgiving environments. After on-vehicle testing was concluded, the Rebound PRO was sent to an independent contractor for precise lab testing, specifically the FMVSS No.139 Tire Bead Unseat Resistance Test (modified to 10 psi). Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600lbs load) without ever de-beading the tire.
Staying true to the ICON Alloys approach, the Rebound PRO has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality. The Rebound PRO has also been strength tested to yield a 3,200lb load rating - making it one of the strongest wheel options on the market. With build features such as these, it's clear that a set of ICON Alloys wheels is the perfect complement to any truck, Jeep, or SUV.
Staying true to the ICON Alloys approach, the Recon PRO has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality. The Recon PRO has also been strength tested to yield a 3,200lb load rating - making it one of the strongest wheel options on the market. With build features such as these, it's clear that a set of ICON Alloys wheels is the perfect complement to any truck, Jeep, or SUV.
Read more
Key Features
Features mounting holes for 2019-2020 model specific wire harnesses
Multi-height design can yield 0.5” to 2.25” of front lift height
Does not require disassembly of the shock for installation
CNC machined 6061 billet aluminum construction
Black anodized finish for corrosion resistance and great looks
Keeps OE shock in the ride zone, maintaining factory ride quality
Lifetime guarantee against component breakage or manufacturer defect
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Alloys
UPC 840103408170
Proxy Number 6130
Shipping Width 7.00 in
Shipping Length 14.00 in
Shipping Depth 3.00 in
Shipping Weight 5.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 5" BS / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Ride height sensor recalibration recommended on 2019-2020 F-150 Raptor
