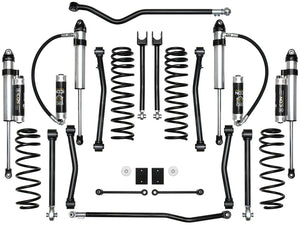

ICON 2018+ Jeep Wrangler JL 2.5in Stage 8 Suspension System

K22018 Overview
Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has logged over a thousand miles in the dirt pushing the JL to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2.5” suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
2.5" lift height
Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
3" front, 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate coil springs with lifetime guarantee against sagging/breakage
2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415840
Proxy Number 22018
Shipping Width 13.00 in
Shipping Length 22.00 in
Shipping Depth 8.00 in
Shipping Weight 211.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)
APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine. Not compatible with 3.6L V6 eTorque engine.
Ships In Multiple Boxes
System Components
22021 (qty: 1) | 18-23 JL/20-23 JT FRONT FIXED LOWER LINK KIT
22022 (qty: 1) | 18-23 JL/20-23 JT FRONT ADJ UPPER LINK KIT
22023 (qty: 1) | 18-23 JL REAR ADJ LOWER LINK KIT
22024 (qty: 1) | 18-23 JL REAR FIXED UPPER LINK KIT
22025 (qty: 1) | 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT
22026 (qty: 1) | 18-23 JL 2.5" REAR DUAL RATE SPRING KIT
22027 (qty: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
22028 (qty: 1) | 18-UP JL REAR ADJ TRACK BAR KIT
27821CP (qty: 1) | 20-23 JT/18-23 JL 2.5" FRONT 2.5 VS RR CDCV PAIR
27726CP (qty: 1) | 18-23 JL 2.5" REAR 2.5 VS PB CDCV PAIR
