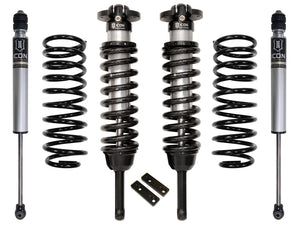

ICON 2010+ Toyota FJ/4Runner 0-3.5in Stage 1 Suspension System

K53061 Overview
This is our entry level suspension system for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.5" of lift height
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series rear IFP shock with 5/8" shaft
Bolt-on system means no cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103416946
Proxy Number 53061
Shipping Width 13.00 in
Shipping Length 26.00 in
Shipping Depth 7.00 in
Shipping Weight 80.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #102: KDSS equipped require rear track bar 54200
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
System Components
58646 (qty: 1) | 10-14 FJ/10-24 4RNR/10-23 GX 2.5 VS IR COILOVER KIT
52700 (qty: 1) | 07-14 FJ/03-24 4RNR/03-23 GX REAR 2" SPRING KIT
56505 (qty: 2) | 07-14 FJ/03-24 4RNR/03-23 GX 1-3" REAR 2.0 VS IR
