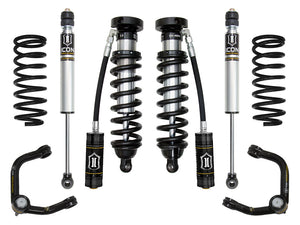

ICON 96-02 Toyota 4Runner 0-3in Stage 3 Suspension System

K53133 Overview
The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor over a decade ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 3 suspension system on and off-road performance is significantly improved with 2.5 VS Series Extended Travel Remote Reservoir Coilovers and 2.0 Aluminum Series rear shocks that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The addition of an ICON tubular steel upper control arm kit provides increased wheel travel over stock while also offering alignment correction for improved overall handling. ICON engineered rear coil springs increase rear suspension performance while also providing 1" of rear end lift. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 3 suspension system is an excellent choice for those drivers looking to drastically improve the performance and handling characteristics of their 3rd Gen on the road as well as in the dirt.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock
Bolt-on design makes for straightforward install
Decreased body roll
Vehicle-specific tuned front and rear shocks provide superior damping and control
Coilovers are adjustable from 0-3" of lift height
Shocks are fully rebuildable and revalveable
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
CNC machined 6061 aircraft-grade aluminum components
ICON engineered rear coils provide 1" of lift and improved performance
Tubular steel upper control arms feature ICON Delta Joints
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103417349
Proxy Number 53133
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 8.00 in
Shipping Weight 107.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
System Components
58716 (qty: 1) | 96-02 4RUNNER 2.5 VS EXT TRAV RR COILOVER KIT
58400DJ (qty: 1) | 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT
53015 (qty: 1) | 96-02 4RUNNER 1" REAR COIL SPRING KIT
56514 (qty: 2) | 96-02 4RUNNER 0-2" REAR 2.0 VS NR
