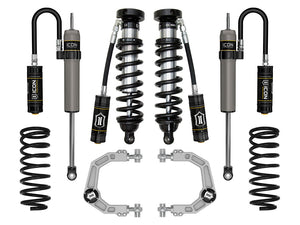

ICON 96-02 Toyota 4Runner 0-3in. Stage 4 Suspension System W/ Billet Upper Control Arms

K53134B Overview
The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor over a decade ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock
Bolt-on design makes for straightforward install
Decreased body roll
Vehicle-specific tuned front and rear shocks provide superior damping and control
Coilovers are adjustable from 0-3" of lift height
Shocks are fully rebuildable and revalveable
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK Rod End bearings for extended longevity and minimal deflection
CNC machined 6061 aircraft-grade aluminum components
ICON engineered rear coils provide 1" of lift and improved performance
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103431369
Proxy Number 53134
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 8.00 in
Shipping Weight 116.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
System Components
58716 (qty: 1) | 96-02 4RUNNER 2.5 VS EXT TRAV RR COILOVER KIT
58500DJ (qty: 1) | 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT
53015 (qty: 1) | 96-02 4RUNNER 1" REAR COIL SPRING KIT
57800P (qty: 1) | 96-02 4RUNNER REAR 2.5 VS RR PAIR
