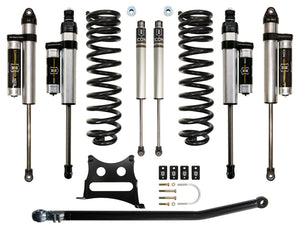

ICON 05-16 Ford F-250/F-350 2.5in Stage 4 Suspension System

K62503 Overview
The ICON 2.5” suspension system is a great way to level your 4WD 2005-2016 Ford F250/350 Super Duty while improving ride quality and performance. This Stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 4 System is comprised of dual rate coil springs, alignment cams for adding caster, adjustable track bar w/ bearing, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, and ICON 2.5 Aluminum Series piggyback reservoir shocks front and rear. ICON 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
ICON engineered dual rate coil springs with match tuned performance shocks
Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
Application Specific Alignment Cams ensure proper Caster alignment
Increased wheel travel and ride quality over stock with no change in towing capacity
Adjustable trackbar for optimum front axle centering and minimizing deflection
Dual steering stabilizer kit for smooth wheel control while driving
Less body-roll than stock
Lifetime guarantee that coil springs won’t sag
No drive shaft modifications required
100% Bolt-on system - no drilling, cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103417998
Proxy Number 62503
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 150.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #94: Not Compatible With F-350 Equipped with Wide Track Front Axle
TECH NOTE: Compatible with 4WD models only
TECH NOTE: 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.5” lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
TECH NOTE: Not compatible with F-350 Cab & Chassis models
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry on 2008-2016 models
TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
System Components
62510 (qty: 1) | 05-19 FSD FRONT 2.5" DUAL RATE SPRING KIT
64035 (qty: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
65000 (qty: 1) | 05-22 FSD DUAL STABILIZER KIT
36511 (qty: 2) | 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
67700P (qty: 1) | 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
37705P (qty: 1) | 99-25 FSD 0-3" REAR 2.5 VS PB PAIR
