ICON 17-19 Ford F250/F350 2.5in Stage 6 Suspension System

K62516 Overview
This ICON Vehicle Dynamics 2.5” suspension system is the best way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. This Stage 5 System combines dual rate coil springs, alignment cams, CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, an adjustable track bar designed specifically for the 2017-UP Super Duty, ICON's dual opposing 2.0 Aluminum Series steering stabilizer kit, and fabriacted Radius Arm System for the ultimate in on-road comfort and off-road performance. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Fits 2017-2019 F250 / F350 4WD applications
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 25% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
ICON shocks feature vehicle specific tune for superior performance and ride quality
ICON CDC Valve allows quick and easy end user compression adjustability
Shocks are fully rebuildable and revalvable
Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103418070
Proxy Number 62516
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 251.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Compatible with 4WD models only
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: Not compatible with F-350 Cab & Chassis models
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock

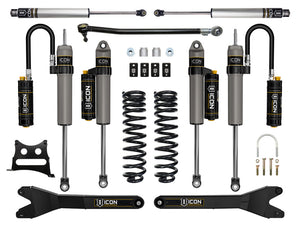

System Components
62510 (qty: 1) | 05-19 FSD FRONT 2.5" DUAL RATE SPRING KIT
67800CP (qty: 1) | 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
37705CP (qty: 1) | 99-25 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
64038 (qty: 1) | 17-25 FSD ADJ TRACKBAR KIT
64041 (qty: 1) | 05-22 FSD RADIUS ARM SYSTEM
65000 (qty: 1) | 05-22 FSD DUAL STABILIZER KIT
36511 (qty: 2) | 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
64037 (qty: 1) | 05-25 FSD 2" BUMP STOP SPACER KIT
