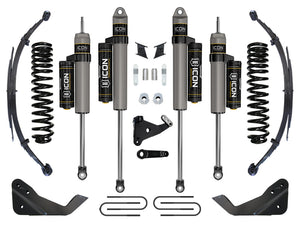

ICON 05-07 Ford F-250/F-350 7in Stage 4 Suspension System

K67103 Overview
ICON’s 7” Suspension System for the 2005-2007 Ford Super Duty offers unparalleled performance and ride quality while giving the vehicle clearance for 38” tall tires. This Stage 4 system takes performance and ride quality to a whole new level. The Stage 4 system comes complete with ICON 2.5 Aluminum Series piggyback shocks, Dual-Rate Coil Springs, Drop Pitman Arm, Pan Rod Bracket, Brake Line Brackets, Radius Arm Drop Down Brackets, ICON's progressive 5" rear leaf springs, and U-bolts.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
50% increase in wheel travel
Less body-roll than stock truck
State of the art dual-rate coil spring
Lifetime guarantee that coil springs won’t sag
Clears 37" Tall Tires
No change in towing capacity
No driveshaft modifications needed
100% Bolt-on system - No drilling, cutting or welding necessary for install
Vehicle Specific tuned 2.5 Aluminum Series Piggyback Reservoir shocks for incredible ride quality
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103418872
Proxy Number 67103
Shipping Width 48.00 in
Shipping Length 48.00 in
Shipping Depth 10.00 in
Shipping Weight 428.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #57: Retains Factory Block For Truck To Sit Level With Front Of Truck
Ships in multiple boxes
System Components
67010 (qty: 1) | 05-07 FSD FRONT 7" BOX KIT
67015 (qty: 1) | 05-25 FSD FRONT 7" DUAL RATE SPRING KIT
62530 (qty: 1) | 05-23 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
64040 (qty: 1) | 05-10 FSD RADIUS ARM DROP KIT
138508 (qty: 2) | 99-07 FSD 5" REAR LEAF SPRING PACK
37003 (qty: 1) | 99-10 FSD REAR 15" U-BOLT KIT
67720P (qty: 1) | 05-25 FSD 4WD 7" FRONT 2.5 VS PB PAIR
37701P (qty: 1) | 99-25 FSD 3-6" REAR 2.5 VS PB PAIR
