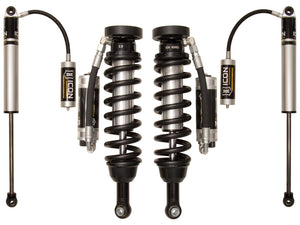

ICON 2011+ Ford Ranger T6 1-3in Stage 3 Suspension System

K93103 Overview
The Ford Ranger T6 is used around the globe in many applications including a commuter vehicle, an industrial workhorse, and an off-road capable weekend warrior. This fact motivated ICON engineers to develop a line of products that were robust enough to handle the most extreme conditions while still being versatile enough to allow the vehicle to be used in every-day scenarios. Installing the Ranger T6 Stage 3 system provides performance that will drastically improve on and off-road vehicle ride characteristics. ICON's vehicle-specific tuned 2.5” remote reservoir w/ CDCV coilovers and 2.0 Aluminum Series rear shocks in this system provide exceptional cooling properties, with the coilovers utilizing ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. Remote reservoirs front and rear ensure optimum performance by keeping the shocks at a cooler operating temperature during extended offroad use, increasing the duration of consistent damping. These 2.5" coilovers w/ CDCV are height adjustable from 1-3” allowing you to level the Ranger T6 front to back, and install a larger tire when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all around feel on any terrain. ICON Vehicle Dynamics’ Ford Ranger T6 suspension systems have been designed with maximum performance, versatility, and the serious driver in mind. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Ford Ranger T6.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear remote reservoir shocks for superior shock damping and control
ICON CDCV equipped front coilovers for fully adjustable tuneability of your shocks
Improved shock durability for the varying terrains and many uses this vehicle faces
Adjustable coilovers from 1-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
FK rod end bearings for extended longevity and minimal deflection
2.0 aluminum body rear shock with 5/8" shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103420219
Proxy Number 93103
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 66.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5 with 5” Backspace
Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
System Components
91210C (qty: 1) | 11-UP RANGER T6 1-3" 2.5 VS RR CDCV COILOVER KIT
96517R (qty: 2) | 11-UP RANGER T6 0-2" REAR 2.0 VS RR
