Icon 21-24 Ford F-150 4WD 2.5 Series Stage 4 CDXS Suspension System

K93114D Overview
ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDXS equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series CDXS piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. The ICON Vehicle Dynamics 2021-2024 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock with no change in towing capacity
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

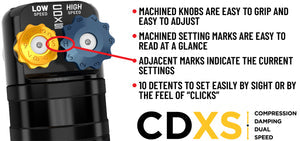

All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
Adjustable coilovers from 0-2.75" of lift height
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
6061 Aircraft grade aluminum CNC machined components
High strength alloy CNC machined lower bar pins
FK rod end bearings for extended longevity and minimal deflection
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
100% Bolt-on system - no cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103431994
Proxy Number 93114
Shipping Width 13.00 in
Shipping Length 31.00 in
Shipping Depth 7.00 in
Shipping Weight 86.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
TECH NOTE: Not compatible with F-150s equipped with BlueCruise
TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
System Components
91823X (qty: 1) | 21-24 F150 4WD 0-2.75" 2.5 VS RR CDXS COILOVER KIT
97720XP (qty: 1) | 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDXS PAIR
