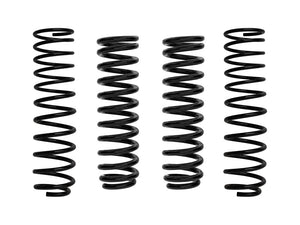

ICON 21-24 Ford F-150 Raptor 2-2.25in Lift Stage 1 Suspension System

K93171 Overview
Transform your Gen3 F-150 Raptor’s performance and stance with the ICON Vehicle Dynamics Stage 1 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models, ensuring an aggressive look and increased ground clearance. Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
Compatible with all versions of available OE shock absorbers
Maintains electronic shock functionality
Linear rate front coil springs
1" rear lift height over stock on Raptors without additional weight in the rear
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
Tapered wire rear coil design achieves maximum travel and efficiency
Significantly improves on- and off-road ride quality and performance over stock
Bolt-on installation with no cutting required
Dual stage powder coating for maximum corrosion resistance
Lifetime guarantee against sagging/breakage
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103431901
Proxy Number 93171
Shipping Width 14.00 in
Shipping Length 28.00 in
Shipping Depth 7.00 in
Shipping Weight 104.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Tires (w/o 37 Package): 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Tires (w/ 37 Package): 37" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
APPLICATION NOTE #187: Only fits OE coilovers. Will not fit ICON or other aftermarket coilovers.
TECH NOTE: Provides 2.25" of front lift over stock on F-150 Raptor
TECH NOTE: Provides 2" of front lift over stock on F-150 Raptor R
System Components
95232 (qty: 1) | 21-24 F-150 RAPTOR FRONT SPRING KIT
95230 (qty: 1) | 21-24 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT
