ICON 21-25 Ford F150 Raptor 1-3in Lift Stage 4 Suspension System

K93174 Overview
After hundreds of hours of R&D and thousands of miles of real world on and off-road testing, ICON engineers have developed products that provide a true performance upgrade over the factory components found on the 2021-2025 Ford F-150 Raptor. The Gen. 3 Raptor is faster and more advanced than its older brother – with an all-new 4-link and coil sprung rear suspension system with lots of performance potential and new technology introduced both on the side of safety and performance. In typical ICON fashion, the new Raptor was pushed to its limits in stock trim to build a list of performance “needs and wants”. After this process, the ICON engineering team began to go over the truck front to rear to identify any opportunities to overcome the limits of the OE suspension and achieve the gains laid out in the previous phases of R&D.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Adjustable 3.0” diameter coilovers yield 1-3” of front lift height
ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

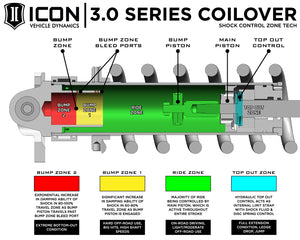

ICON’s multi-stage hydraulic coilover “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
Finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
Billet aluminum front upper control arms feature patented Delta Joint Pro (U.S. Pat. 10,731,700) allowing maximum wheel travel without binding
Adjustable control arms correct suspension geometry and offer quick, precise, on-vehicle adjustment for both caster and camber
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates yield 1" rear lift over stock without additional weight in the rear
3.0” diameter RXT 3-tube bypass rear shocks with 3.0” diameter finned remote reservoirs
Unique side-mounted rear shock upper eyelets allow for increased travel while utilizing factory mounting location
Application specific shock length designed to be paired with ICON rear coil springs provides up to 17" of rear wheel travel
Solenoid mounts bypass factory electronic shock system, keeping OE solenoid coils connected to prevent error codes
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Fully serviceable shock absorber design allows for revalves, rebuilds, and an immeasurable service life
Warranty
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103435534
Proxy Number 93174
Shipping Width 15.00 in
Shipping Length 33.00 in
Shipping Depth 11.00 in
Shipping Weight 245.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (37" or larger tires require coilover bump stop spacers along with trimming and modifications)
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #150: Shocks are fully serviceable
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
APPLICATION NOTE #224: When running 37" tires use up travel limiters part number 611077 in the front
APPLICATION NOTE #225: When running larger than 37" tires, or for very aggressive off-road use with 37" tires, use up travel limiters part number 611078 in the front
APPLICATION NOTE #226: Not compatible with OE rear coils. Shock length requires ICON rear coil springs part number 95230 or 95231.
APPLICATION NOTE #230: Not compatible with F-150 Raptors equipped with dual coil shock absorbers
System Components
95003 (qty: 1) | 21-25 F-150 RAPTOR FRONT 3.0 VS RR CDEV COILOVER KIT
93500 (qty: 1) | 15-23 F150 & 17-22 FSD IIC INSTALL KIT
98564DJ (qty: 1) | 21-24 RAPTOR BILLET UCA DJ PRO KIT
95020 (qty: 1) | 21-25 F-150 RAPTOR SOLENOID MOUNT KIT
95230 (qty: 1) | 21-25 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT
95206L (qty: 1) | 21-25 F-150 RAPTOR DRIVER REAR 3.0 ZETA RXT RR CDEV
95206R (qty: 1) | 21-25 F-150 RAPTOR PASSENGER REAR 3.0 ZETA RXT RR CDEV
