Industrial Injection 12mm Gorilla Girdle w/ ARP Xl Main Studs

SKU: PDM-06020 2003-2018 Cummins Gorilla Girdle W/ ARP XL Main Studs

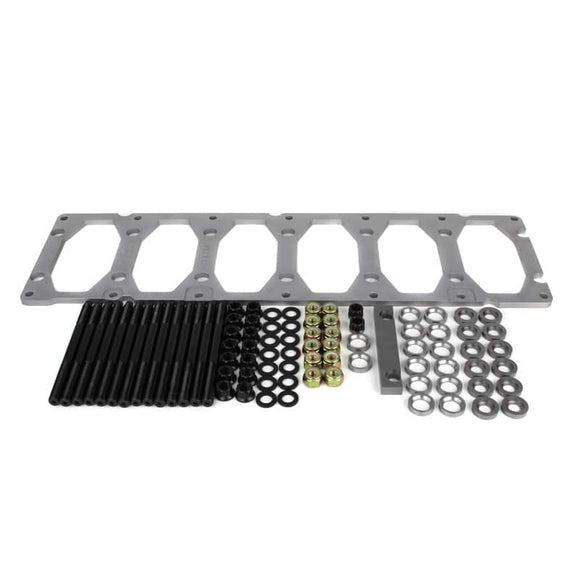

This kit includes:
1 Gorilla Girdle, 14 top spacers, (large hole)
12 bottom spacers (small hole)
1 rear main spacer bar
2 rear main stud nuts (12 point)
12 main stud nuts (Nylock).
Available in 12mm or 14mm
14MM Kit will require a stamped oil pan
Before you start, READ AND UNDERSTAND THE INSTRUCTIONS.
(12mm ARP 2000, 125 ft lbs)
((14mm ARP, 150 ft lbs))
NOTE: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube. We are currently working on a fix for this to prevent any further install issues.
Cummins oil pickup tube part number: 3949692 (qty 1)
Cummins oil pickup tube bolt part number: 3902460 (qty 2)
