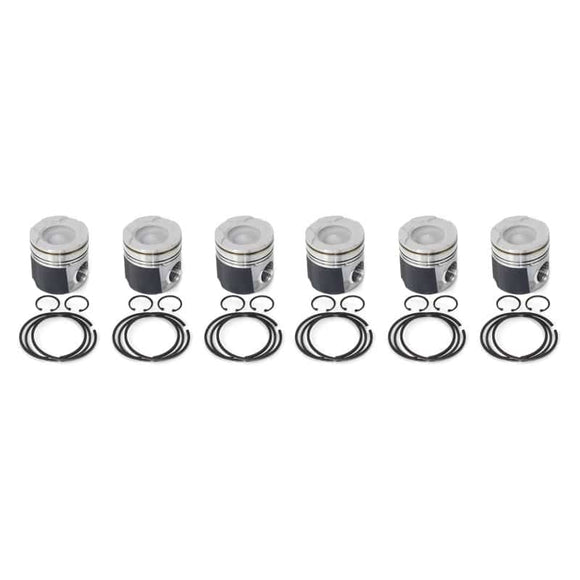

Industrial Injection 04.5-07 Dodge 24V STD w/Rings / Wrist Pins / Clips (Set)

SKU: PDM-3673 2004.5-2007 5.9L Cummins Pistons
Stock Piston Features:
Drop In Replacement
Complete W/ Rings, Wrist Pins And Clips
Available in Std, .020, .040 Sizes
Coated & Chamfered Piston Kit Features:
Drop In Replacement
Complete W/ Rings, Wrist Pins And Clips
Available in Std, .020, .040 Sizes
.010 Machined Off The Top and Chamfered
Thermal Barrier Coating For Piston Tops
Ceramic Piston Skirt Coating
Fly Cut, Coated & Chamfered Piston Kit Features:
Drop In Replacement
Complete W/ Rings, Wrist Pins And Clips
Available in Std, .020, .040 Sizes
Fly Cut with .100 Valve Reliefs
Chamfered tops
Thermal Barrier Coating For Piston Tops
Ceramic Piston Skirt Coating
Fly Cut (valve relief): .100
Fly cutting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.
Chamfering:
Our Coated Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)
Skirt and Top Coating:
PDM’s Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction. This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f. This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant. It is used in applications where high temperatures, high loads and high speeds are experienced. When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load. Gray in color it acquires a glass like finish in use. Cured film thickness of “.001” or less requires no change is piston clearance.
PDM’s Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios. The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency.
*Sold as a set of 6 pistons
