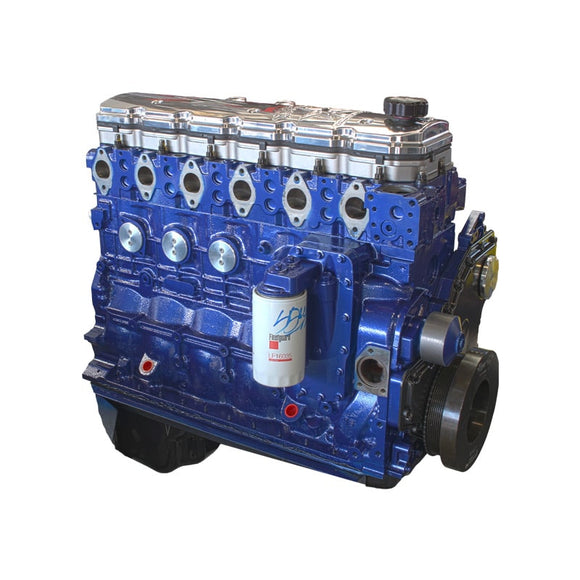

Industrial Injection 03-15 Dodge Cummins Shredder Long Block

SKU: PDM-SSRLB 6.4L Shredder Series Cummins Long Block
Shredder Series Build:
6.7L Cummins Block w/ 4.130 Bore Ductile Iron Sleeves Installed
Bore Hone Torque Plated
Fully Balanced/Polished Rotating Assembly
Diamond Forged 4.130 Bore Pistons (Late 5.9 Large Bowl)
14mm Silver Back Gorilla Girdle installed w/ ARP Main Studs
Wagler HD Forged Rods
Billet 220/240 Hamilton Camshaft
Billet Oversized Tappets
Sim Tested Short Block
Stage 3 Cylinder Head w/ 36mm Oversized Valves
120lb Valve Springs
Radius Cut Fire ring Grooves w/ Fire ring Head Gasket
Stainless Steel Gas Nitrated Valves
Diamond Honed Steel Guides
Custom High Temp Valves Seats
Intake Plenum Machined Off To Accept Your Side Draft
5 Axis CNC Ported & Hand Blended Intake & Exhaust Ports
Drilled & Tapped Coolant Freeze Plugs In Cylinder Head
Billet Valve Bridges
Custom DLC Coated Trunnions
ARP 625 High Strength Head Studs
Stage 2 Billet Pushrods
Billet Shredder Series Valve Cover
Coated HX Series Main & Rod Bearings
Billet Freeze Plugs
Fluid Damper
New Oil Pump
New Oil Cooler
New Water Pump
Stamped Oil Pan
Super Shredder Series Upgrade Option:
Concrete filled Block w/ 1” Deck Plate, 1” Longer Wagler HD Forged Rods & 9/16 ARP Head Studs. Add $4,000
*Engine does not come with a turbocharger, any fueling, or side draft Intake
*All Industrial Injection short blocks and long blocks are required to be ran with Joe Gibbs Break In Oil (not included) for break in.
*Shipping of
engines varies for each purchase. We quote shipping after engine is purchased.
Cores can be sent in before hand to eliminate the core charge of $3200.00.
