STMK-ID-1750.60.11.D.6+90.1x6

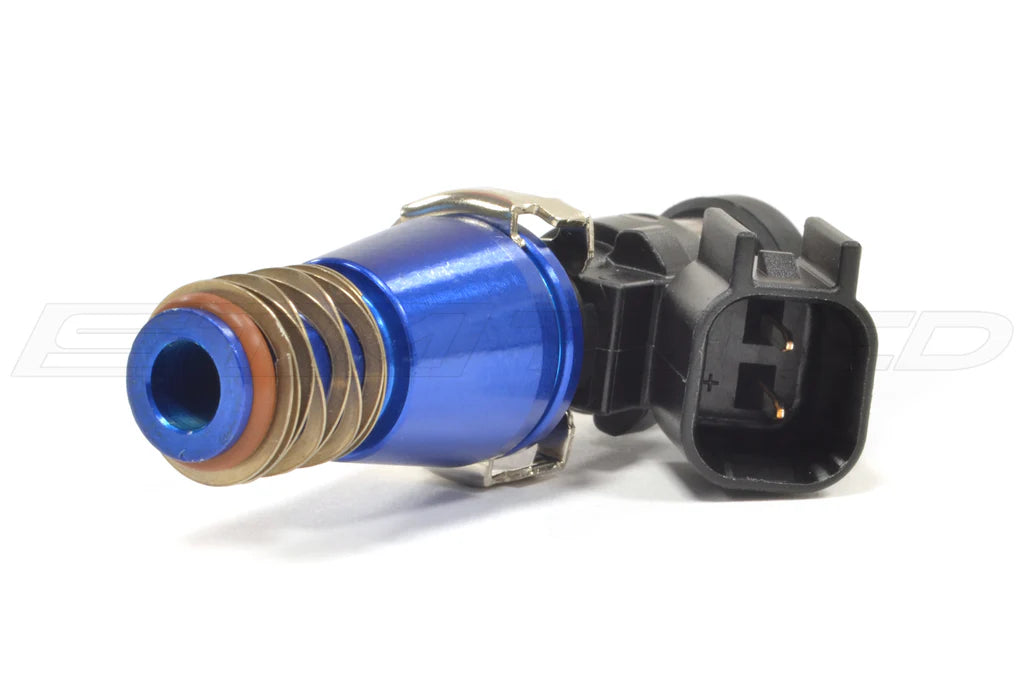

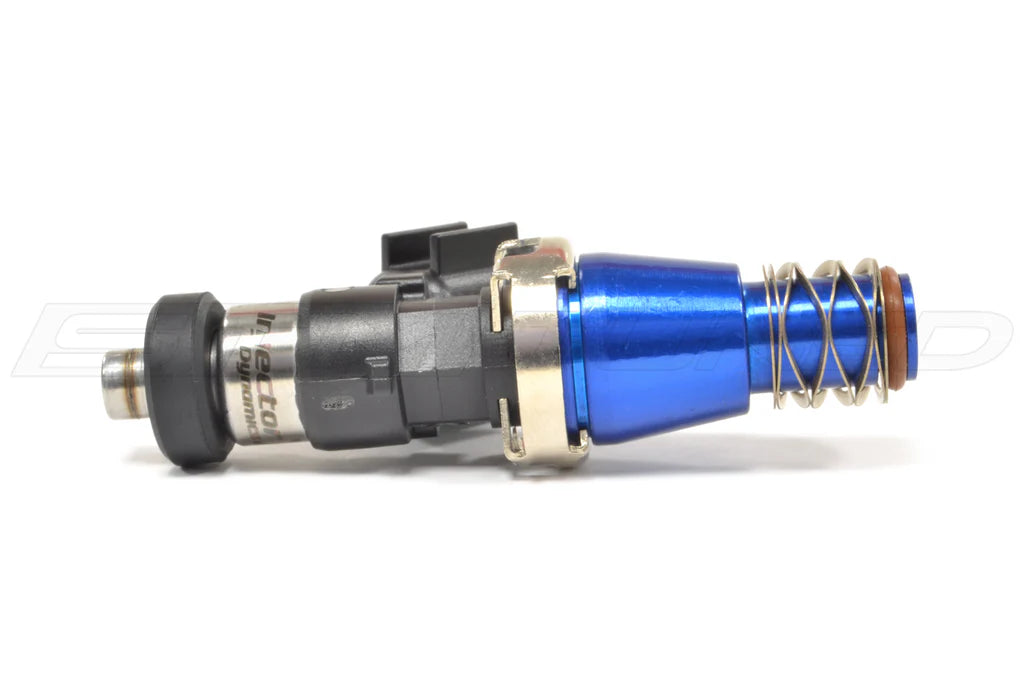

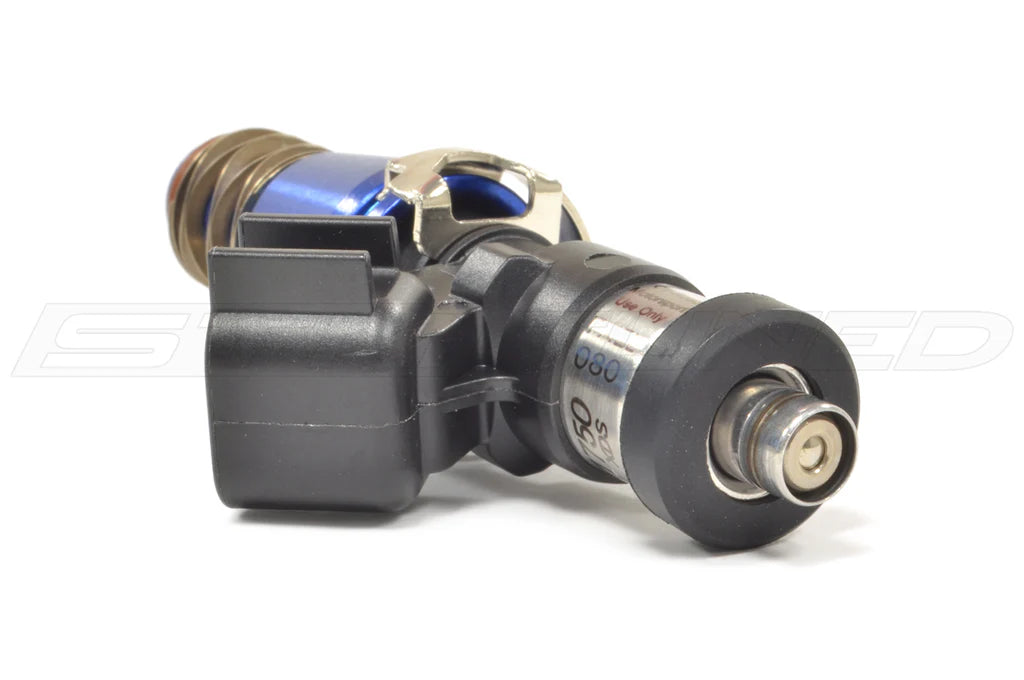

Injector Dynamics 1750 XDS fuel injectors for 6G73 3000GT and Stealth. Includes a full set of 6 injectors with the proper 90.1 plug and play adapters. Safe for all fuels!
What's New:
The best just got better! The ID1750 is the successor to the ID1700, featuring numerous improvements. Compared to the 1700, the 1750 offers:
• Higher Dynamic Flow Rate With no Increase in Minimum Fuel Mass
• Better Cylinder to Cylinder Balance at Low Pulsewidths
• Improved Pressure Sensitivity
Vehicle Fitment:
1991-1999 3000GT VR-4
1991-1996 Stealth R/T Turbo
Purchase Includes:
• Set of 6 Injectors
• Set of 6 Plug & Play Adapters (90.1)
Description:
The ID1750 is a partnership of Injector Dynamics and Bosch Motorsport. Features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes these injectors immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. These injectors excel at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
ID1750 XDS Injectors |
||||
| Nominal Flow Rate | Maximum Differential Fuel Pressure | Fuel Compatibility | Electrical Connector | PNP Clips |
| 1728cc/min @ 43.5 psi) using E10 Fuel at 120°F | 101.5 psi | Methanol/Ethanol/MTBE/Nitromethane/All Known Hydrocarbon Fuels. | USCAR | 90.1 |
ID1750-XDS Dynamic Flow Data |
|||||||
|
Fuel Pressure (psid) |
Offset (µsec) |
Slope (cc/min) |
|||||
| 8 Volts | 10 Volts | 12 Volts | 14 Volts | 16 Volts | |||
| 43.5 | 2635 | 1641 | 1169 | 882 | 689 | 1728 | |
| 45.0 | 2679 | 1660 | 1180 | 889 | 695 | 1759 | |
| 50.0 | 2834 | 1726 | 1222 | 918 | 714 | 1858 | |
| 55.0 | 3004 | 1798 | 1268 | 951 | 737 | 1953 | |
| 60.0 | 3194 | 1873 | 1316 | 987 | 766 | 2044 | |
| 65.0 | 3404 | 1952 | 1367 | 1027 | 804 | 2131 | |
| 70.0 | N/A | 2036 | 1420 | 1069 | 844 | 2216 | |
| 75.0 | N/A | 2122 | 1472 | 1109 | 878 | 2296 | |
| 80.0 | N/A | 2211 | 1524 | 1148 | 908 | 2373 | |
| 85.0 | N/A | 2304 | 1577 | 1187 | 936 | 2446 | |
| 90.0 | N/A | 2400 | 1634 | 1228 | 968 | 2515 | |
| 95.0 | N/A | 2499 | 1694 | 1270 | 1000 | 2582 | |
| 100.0 | N/A | 2601 | 1757 | 1314 | 1034 | 2645 | |
