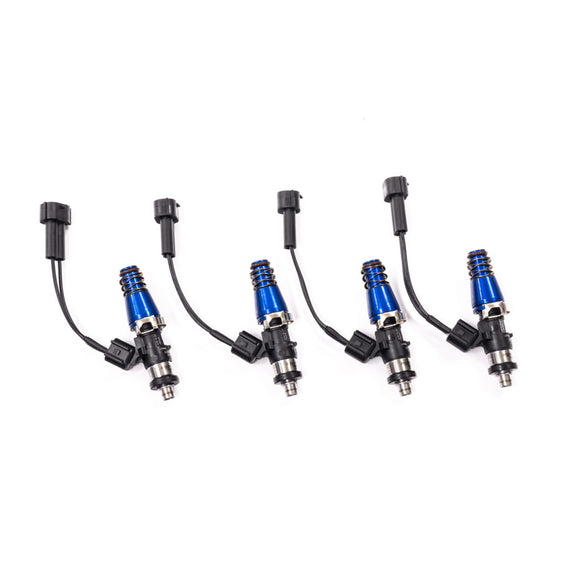

Injector Dynamics ID1050X Injectors 11mm (Blue) Adaptors -204 Lower Cushions (Set of 4)

1050.11.02.60.11.4

ID1050-XDS, for 90-05 Miata, 1.6L / 1.8L, 11mm (blue) adapters, -204 lower cushions (remove lower o-ring retainer) Set of 4. Includes potted USCAR to Denso PNP wiring adaptor.

The ID1050-XDS is the evolution of the ID1050x.

The ID1050-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.

Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.

Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.

Stronger magnetic circuit offers stable operation up to 10 bar.

Replaceable inlet filter extends service life.

Base Specifications

Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR
