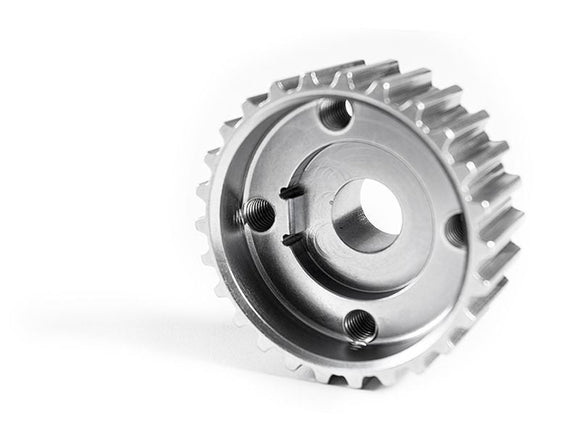

IE Billet Press Fit Timing Belt Drive Gear For 06A 1.8T 20V Engines (4 bolt gear interface)

4 & 6 BOLT INTERFACES

This press fit timing gear is for use with 1.8T 06A 4 bolt crank damper pulleys.  This gear should be used on 1.8T engines when using either the OEM crank damper pulley or aftermerket 4 bolt crank damper pulleys for 1.8T engines.  For high power output engines, you may want to upgrade the 4 bolt interface to a 6 bolt interface. The 6 bolt interface is found on all 2005+ 2.0T FSI engines and is a much stronger setup than the older 1.8T 4 bolt interface.  In order to upgrade your 1.8T engine to a 6 bolt interface, you need the IE FSI billet press fit timing gear (IE part number IEBEVC8) and Fluidampr FSI crank damper pulley (IE part number FD-551211) as a direct swap solution.

TECHNICAL INFORMATION

Factory timing gears are notorious for coming loose in high RPM conditions, leading to the keyways completely breaking, causing timing belt failure. We have also seen failures from the powdered metal gears completely disintegrating from small cracks that develop as the bolt is torqued. As a result from these failures, valves bend and pistons become damaged. To find the ultimate solution for the faulty OE timing gear, IE engineers put in serious work and testing to bring a bullet proof solution to the market. With this product, we have completely redesigned the factory interface, removing the weak factory gear and loose-fitting keyway, replacing it with a solid steel gear with a press-fit interface.

CONSTRUCTION

Our gears start out as a solid block of steel and get precisely machined into the finished piece, with special attention taken to the area where the gear meets the crankshaft. Our billet replacement offers a press-fit, so the gear is no longer loose on the end of the crankshaft, eliminating any chance of the gear coming loose and shearing the keyway. We finish them with a bright zinc plated finish to prevent against corrosion.

REQUIRES IE/ARP CRANK DAMPER BOLT

In order to reach proper fitment, the gear must be installed along with an IE/ARP crank damper bolt (IE Part Number: ARP-06A-01).

VEHICLE FITMENT

• AUDI - A4 1996-2001 (B5 - B5.5) 1.8T 20V (LATE 06A ENGINES ONLY)
• AUDI - A4 2002-2005 (B6) 1.8T 20V

• AUDI - A6 1998-2004 (C5) 1.8T 20V
• AUDI - A6 Allroad 1998-2004 (C5) 1.8T 20V
• AUDI - TT 2000-2006 (MK1 - 8N) 1.8T 20V
• AUDI - A3 1996-2003 (MK1 - 8L) 1.8T 20V
• AUDI - S3 1996-2003 (MK1 - 8L) 1.8T 20V
• VW - Golf 1999-2005 (MK4) 1.8T 20V
• VW - GTI 1999-2005 (MK4) 1.8T 20V
• VW - Passat 1998-2005 (B5 - B5.5) 1.8T 20V (LATE 06A ENGINES ONLY)
• VW - Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V
• VW - Beetle 1998-2011 (1C - 9C - 1Y) 1.8T 20V
