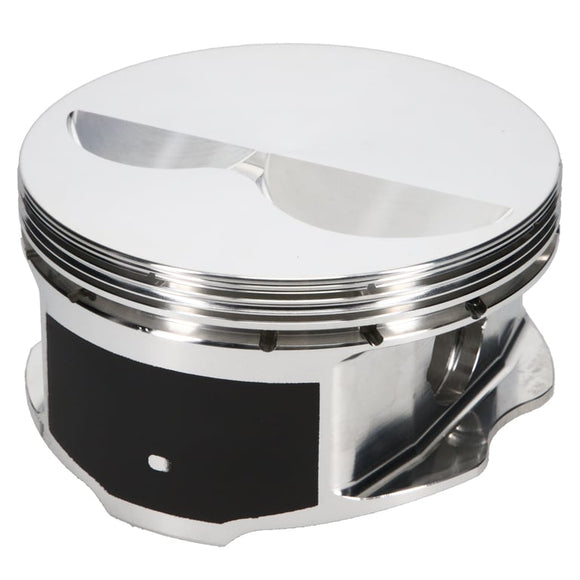

JE Pistons 350 SBC FLAT TOP (Left Side) *SINGLE PISTON ONLY*

SKU: 105038L Piston Series
JE Pistons
Cylinder Head
STD CHEVROLET 23 DEG
Bore Diameter
4.030 IN
Piston Head Type
Flat
Compression Height
1.250 IN
Piston Volume
-1.90 CC
Piston Material
2618
Piston Quantity
1
Forging Type
Round
Piston Orientation
Left
Piston Average Weight
382 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0640 IN
Second Compression Ring Thickness
0.0640 IN
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.500 IN
Wrist Pin Wall Thickness
0.130 IN
