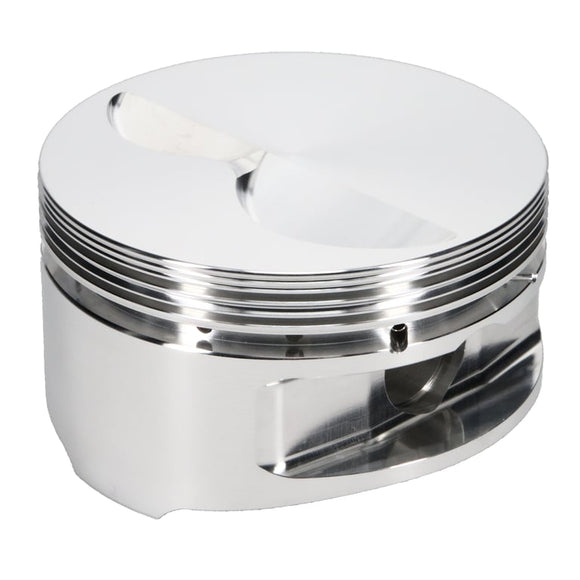

JE Pistons 400 SBC FLAT TOP - Single Piston

SKU: 181938R Piston Series
JE Pistons
Cylinder Head
CHEVROLET 23 DEG 20/30
Bore Diameter
4.125 IN
Piston Head Type
Flat
Compression Height
1.125 IN
Piston Volume
-4.30 CC
Piston Material
2618
Piston Quantity
1
Forging Type
Round
Piston Orientation
Right
Piston Average Weight
418 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0640 IN
Second Compression Ring Thickness
0.0640 IN
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.750 IN
Wrist Pin Wall Thickness
0.150 IN
