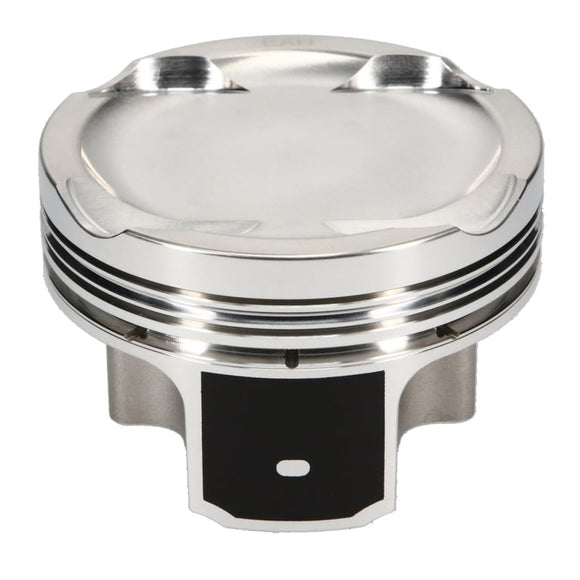

JE Pistons MITSU 2.0 DISH KIT Set of 4 Pistons

SKU: 208478 Piston Series
JE Pistons
Cylinder Head
4G63
Bore Diameter
85.50 MM
Piston Head Type
Dish
Compression Height
1.367 IN
Piston Volume
-13.40 CC
Piston Material
2618
Piston Quantity
4
Forging Type
Round
Piston Average Weight
317 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0480 IN
Second Compression Ring Thickness
0.0600 IN
Oil Ring Thickness
0.119 IN
Wrist Pin Outer Diameter
0.827 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
Engine Detail
4G63 1988-92 Eclipse / Talon / Evo 21 mm Pin (6 Bolt)
