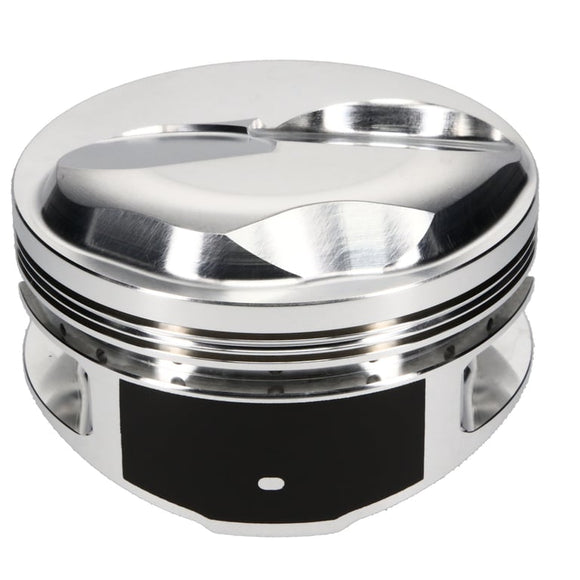

JE Pistons BBC 4.500in Bore +.034 Oversize 1.270 CH- Single Piston

SKU: 258247S Piston Series
JE Pistons
Cylinder Head
OPEN CHAMBER
Bore Diameter
4.500 IN
Piston Head Type
Dome
Compression Height
1.270 IN
Piston Volume
37.00 CC
Piston Material
2618
Piston Quantity
1
Forging Type
Round
Piston Average Weight
618 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0640 IN
Second Compression Ring Thickness
0.0640 IN
Oil Ring Thickness
0.218 IN
Wrist Pin Outer Diameter
0.990 IN
Wrist Pin Length
2.930 IN
Wrist Pin Wall Thickness
0.150 IN
