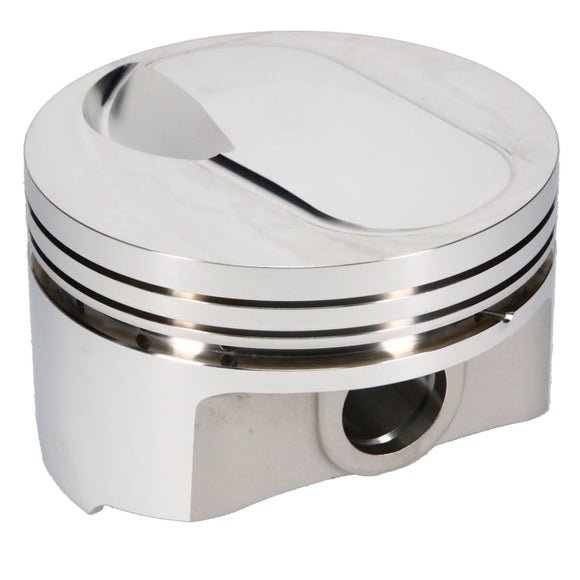

JE Pistons GM 502 Replacement 4.470 Bore 8.7-9.6:1 Comp Ratio 1cc Dome Pistons - Set of 8

SKU: 281916 Piston Series
SRP
Cylinder Head
OPEN CHAMBER
Bore Diameter
4.470 IN
Piston Head Type
Dome
Compression Height
1.645 IN
Piston Volume
1.00 CC
Piston Material
4032
Forging Type
Round
Piston Average Weight
699 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0640 IN
Second Compression Ring Thickness
0.0640 IN
Oil Ring Thickness
0.188 IN
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Length
2.930 IN
Wrist Pin Wall Thickness
0.150 IN
