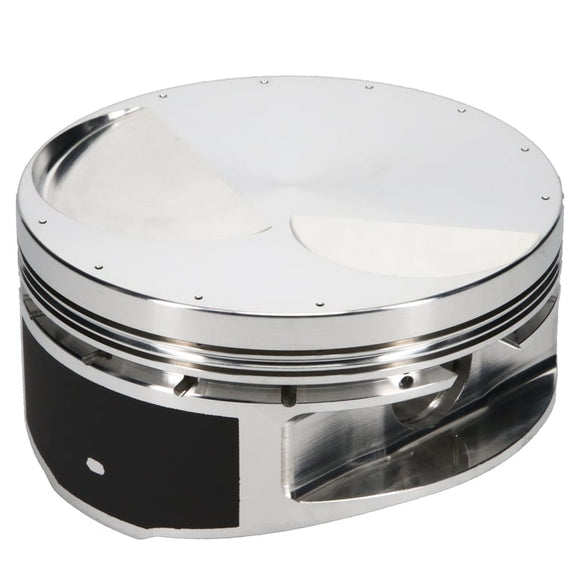

JE Pistons BBC 12/14 DEG Set of 8 Pistons

SKU: 293520 Piston Series
JE Pistons
Cylinder Head
BIG CHIEF 12 DEG/14 DEG
Bore Diameter
4.625 IN
Piston Head Type
Flat
Compression Height
1.140 IN
Piston Volume
-7.30 CC
Piston Material
2618
Piston Quantity
8
Forging Type
Round
Piston Average Weight
584 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0435 IN
Second Compression Ring Thickness
0.0440 IN
Oil Ring Thickness
0.218 IN
Wrist Pin Outer Diameter
0.990 IN
Wrist Pin Length
2.930 IN
Wrist Pin Wall Thickness
0.180 IN
