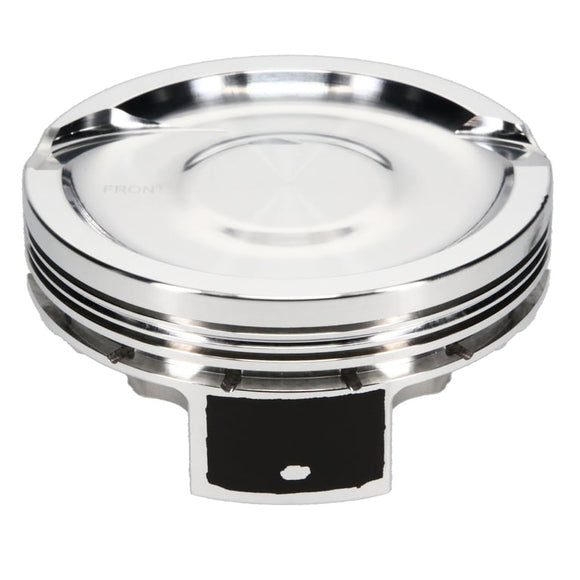

JE Pistons LS ASYM DISH/INV DM Left Single Piston

SKU: 312041L Piston Series
JE Pistons
Cylinder Head
LS 12 DEG/15 DEG COMBO VR
Bore Diameter
4.010 IN
Piston Head Type
Dish
Compression Height
1.115 IN
Piston Volume
-26.60 CC
Piston Material
2618
Piston Quantity
1
Forging Type
FSR
Piston Orientation
Left
Piston Average Weight
396 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0480 IN
Second Compression Ring Thickness
0.0600 IN
Wrist Pin Included
Yes
Wrist Pin Part Number
927-2250-15-51C
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.170 IN
Wrist Pin Retainer Included
Yes
Ring Set Thickness
1.20 MM x 1.50 MM x 3.00 MM
