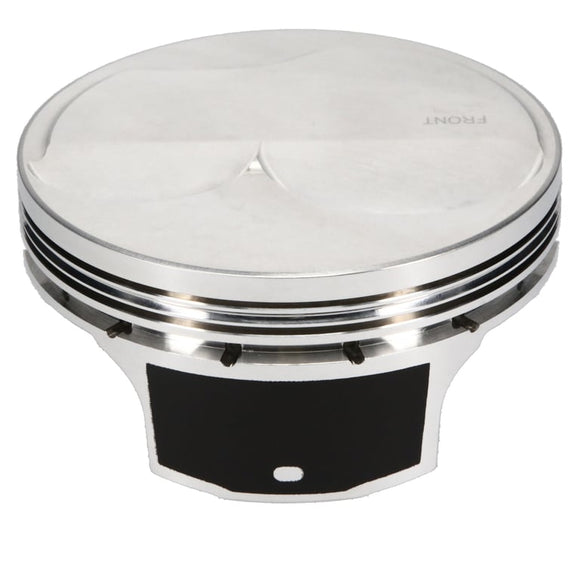

JE Pistons Chevrolet LS Gen III/IV Piston Kit - 4.075 in. Bore - 1.115 in. CH - 2.80 CC - Qty 8

SKU: 312111 Piston Series
JE Pistons
Cylinder Head
GM LS1 15 DEG
Bore Diameter
4.075 IN
Piston Head Type
Dome
Compression Height
1.115 IN
Piston Volume
2.80 CC
Piston Material
2618
Piston Quantity
8
Forging Type
FSR
Piston Average Weight
415 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0480 IN
Second Compression Ring Thickness
0.0600 IN
Oil Ring Thickness
0.149 IN
Wrist Pin Part Number
927-2250-15-51C
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
Wrist Pin Retainer Included
Yes
Ring Set Thickness
1.20 MM x 1.50 MM x 3.00 MM
