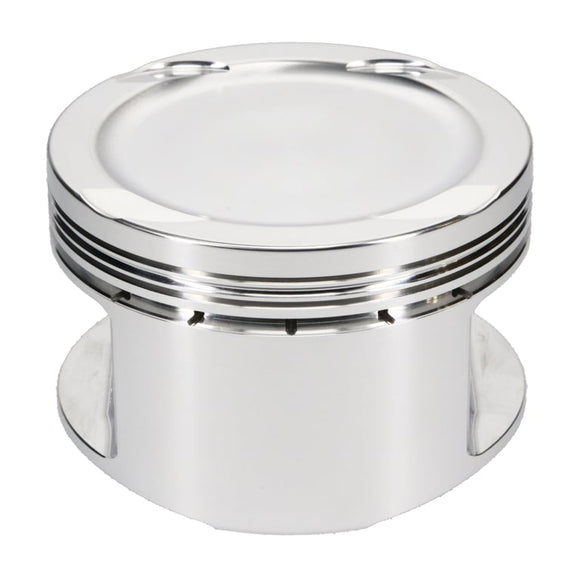

JE Pistons Toyota 1FZ-FE 100.5mm Bore + .50 Size 8.5:1 CR Pistons

SKU: 321321 Piston Series
JE Pistons
Cylinder Head
1FZ-FE
Bore Diameter
100.50 MM
Piston Head Type
Dish
Compression Height
1.535 IN
Piston Volume
-18.00 CC
Piston Material
2618
Piston Quantity
6
Forging Type
Round
Piston Average Weight
462 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0400 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Outer Diameter
1.024 IN
Wrist Pin Length
2.500 IN
Wrist Pin Wall Thickness
0.200 IN
