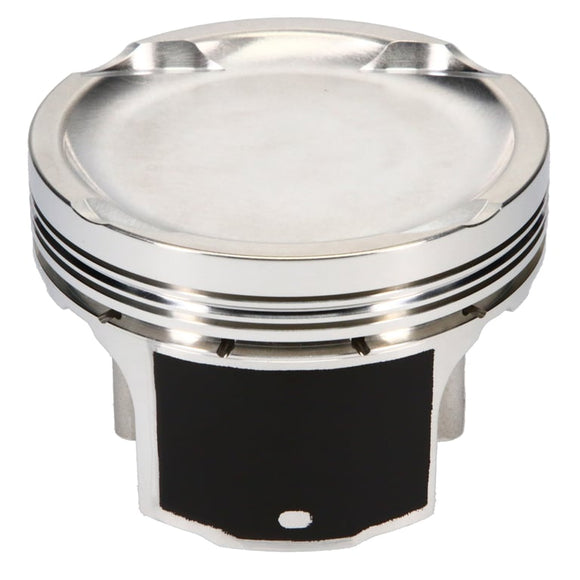

JE Pistons Ford Sierra Cosworth N5B YB 90.82mm Bore Standard Size Pistons

SKU: 322459 Piston Series
JE Pistons
Cylinder Head
COSWORTH
Bore Diameter
90.82 MM
Piston Head Type
Dish
Compression Height
1.604 IN
Piston Volume
-20.00 CC
Piston Material
2618
Piston Quantity
4
Forging Type
FSR
Piston Average Weight
378 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0400 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Outer Diameter
0.945 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
