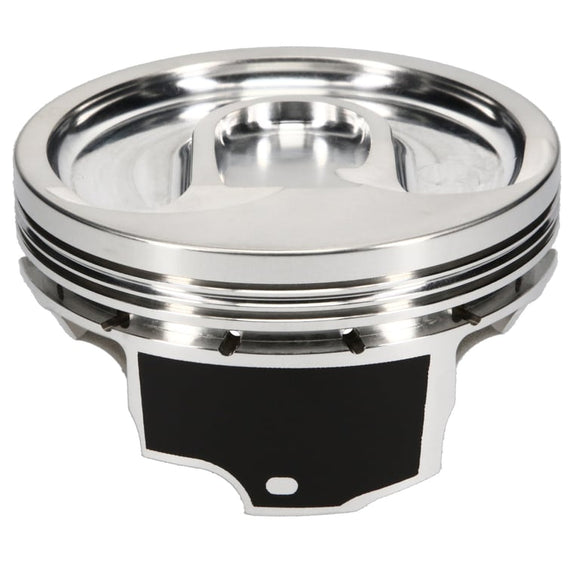

JE Pistons GM LT1 Asymmerical KIT Set of 8 Pistons

SKU: 338677 Piston Series
JE Pistons
Cylinder Head
GEN 5 LT1
Bore Diameter
4.070 IN
Piston Head Type
Dish
Compression Height
1.304 IN
Piston Volume
-15.10 CC
Piston Material
2618
Piston Quantity
8
Forging Type
FSR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0480 IN
Second Compression Ring Thickness
0.0600 IN
Oil Ring Thickness
0.1175 IN
Wrist Pin Included
Yes
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
Wrist Pin Retainer Included
Yes
Ring Set Thickness
1.20 MM x 1.50 MM x 3.00 MM
