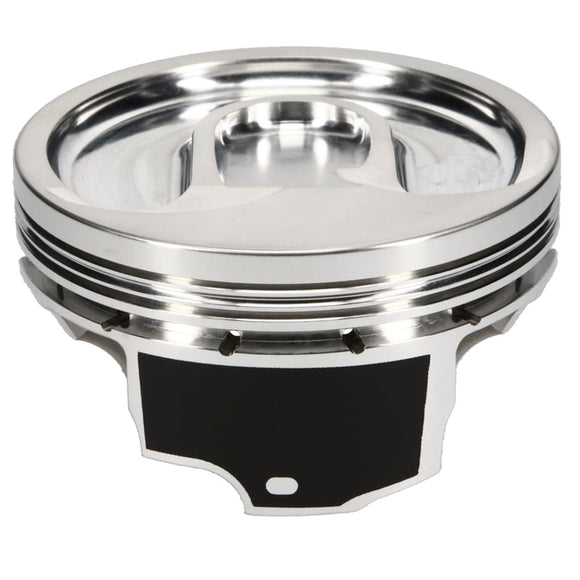

JE Pistons Ultra Series GM LT1 Asymmerical Piston Set of 8 Pistons

SKU: 338682 Piston Series
JE Pistons
Cylinder Head
GEN 5 LT1
Bore Diameter
4.065 IN
Piston Head Type
Dish
Compression Height
1.115 IN
Piston Volume
-23.90 CC
Piston Material
2618
Piston Quantity
8
Forging Type
FSR
Piston Average Weight
432 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0480 IN
Second Compression Ring Thickness
0.0600 IN
Oil Ring Thickness
0.149 IN
Wrist Pin Part Number
927-2250-15-51C
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
Wrist Pin Retainer Included
Yes
Ring Set Thickness
1.20 MM x 1.50 MM x 3.00 MM
