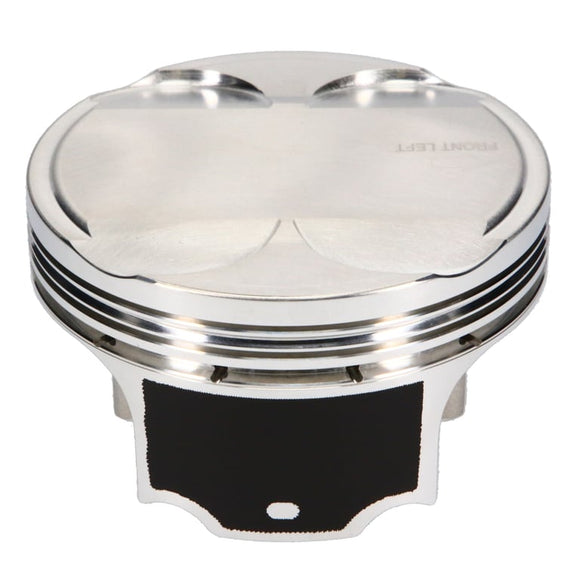

JE Pistons Ford GT350 Voodoo 5.2L Modular 3.701 Bore 12.5:1 CR -8.9cc Dish Piston (Single-Left)

JE Pistons Ford GT350 Voodoo 5.2L Modular 3.701 Bore 12.5:1 CR -8.9cc Dish Piston (Single-Left)

$239.71 CAD

JE Pistons SKU: jep345871L

Description Availability

SKU: 345871L Piston Series
JE Pistons
Cylinder Head
MODULAR 5.2L VOODOO
Bore Diameter
3.701 IN
Piston Head Type
Dome
Compression Height
1.161 IN
Piston Volume
8.90 CC
Piston Material
2618
Piston Quantity
1
Forging Type
FSR
Piston Orientation
Left
Piston Average Weight
398 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0400 IN
Second Compression Ring Thickness
0.0480 IN
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.827 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
