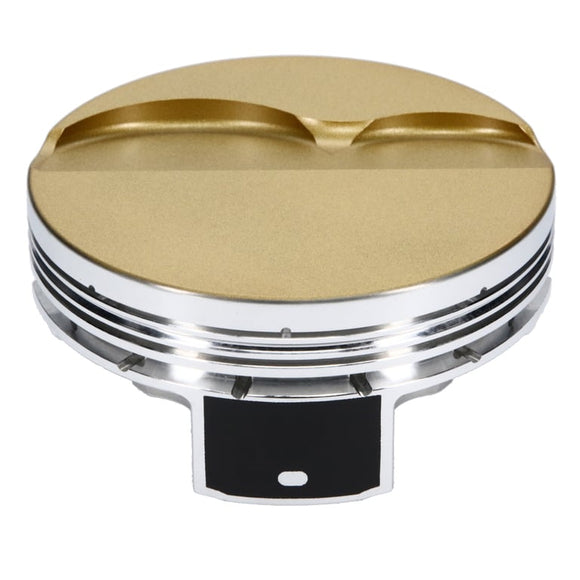

JE Pistons Ultra Series GM Gen III/IV LS 4.075in Bore 1.304 CD (Right Side) - Single Piston

SKU: 360770R Piston Series
JE Ultra Series
Cylinder Head
LS 12 DEG/15 DEG COMBO VR
Bore Diameter
4.075 IN
Piston Head Type
Flat
Compression Height
1.304 IN
Piston Volume
-5.00 CC
Piston Material
2618
Forging Type
FSR
Piston Orientation
Right
Ring Set Included
No
Top Compression Ring Thickness
0.0475 IN
Second Compression Ring Thickness
0.0600 IN
Oil Ring Thickness
0.1175 IN
Wrist Pin Included
Yes
Wrist Pin Material
9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.200 IN
Wrist Pin Retainer Included
Yes
Ring Set Thickness
1.20 MM x 1.50 MM x 3.00 MM
