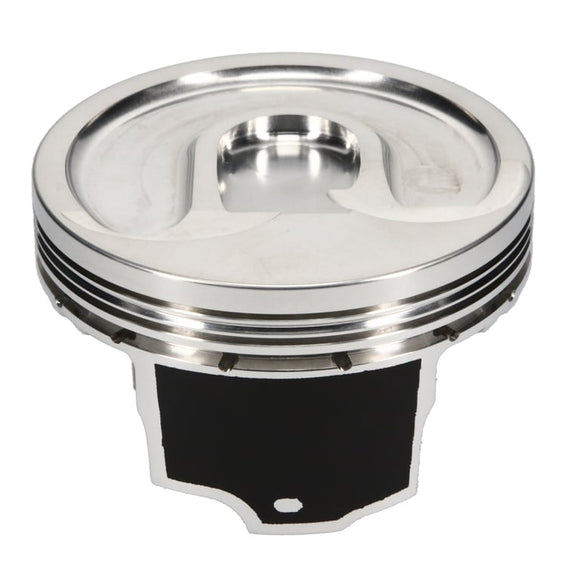

JE Pistons Ultra Series GM Gen V LT4 4.07in Bore/3.622in Stroke Set of 8 Pistons

SKU: 360792 Piston Series
JE Ultra Series
Cylinder Head
GEN 5 LT4
Bore Diameter
4.070 IN
Piston Head Type
Dish
Compression Height
1.295 IN
Piston Volume
-6.50 CC
Piston Material
2618
Forging Type
FSR
Ring Set Included
No
Top Compression Ring Thickness
0.0475 IN
Second Compression Ring Thickness
0.0600 IN
Oil Ring Thickness
0.119 IN
Wrist Pin Included
Yes
Wrist Pin Part Number
927-2250-18-93C
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.200 IN
Wrist Pin Retainer Included
Yes
Ring Set Thickness
1.20 MM x 1.50 MM x 3.00 MM
