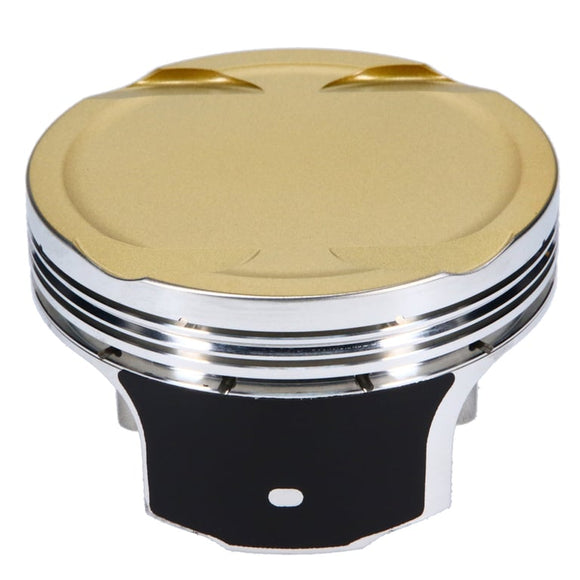

JE Pistons Ultra Series Modular Ford Coyote Gen 1/2 3.63in Bore/3.65in Stroke Set of 8 Pistons

JE Pistons Ultra Series Modular Ford Coyote Gen 1/2 3.63in Bore/3.65in Stroke Set of 8 Pistons

$1,912.38 CAD

JE Pistons SKU: jep360830

Description Availability

SKU: 360830 Piston Series
JE Ultra Series
Cylinder Head
MODULAR 5.0L COYOTE GEN 1/2
Bore Diameter
3.630 IN
Piston Head Type
Dome
Compression Height
1.174 IN
Piston Volume
2.50 CC
Piston Material
2618
Forging Type
FSR
Ring Set Included
No
Top Compression Ring Thickness
0.0395 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Material
9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter
0.866 IN
Wrist Pin Wall Thickness
0.230 IN
