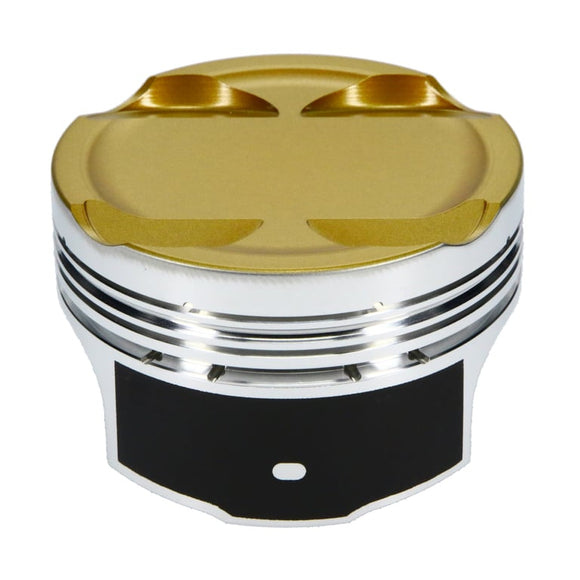

JE Pistons Ultra Series Mitsubishi EVO 7-9 4G63 85.5mm Bore 10.0:1 CR Set of 4 Pistons

JE Pistons Ultra Series Mitsubishi EVO 7-9 4G63 85.5mm Bore 10.0:1 CR Set of 4 Pistons

$1,431.06 CAD

JE Pistons SKU: jep361291

Description Availability

SKU: 361291 Piston Series
JE Ultra Series
Cylinder Head
4G63
Bore Diameter
85.50 MM
Piston Head Type
Dish
Compression Height
1.130 IN
Piston Volume
-13.20 CC
Piston Material
2618
Forging Type
FSR
Piston Average Weight
289 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0395 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.141 IN
Wrist Pin Material
9310 Nickel Carbon Steel Alloy
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.230 IN
Engine Detail
4G63 2001-2007 Evo VII-IX / 22 mm Pin
