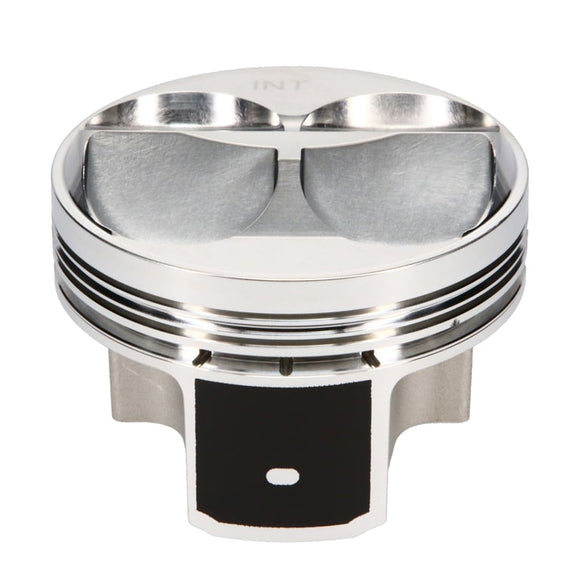

JE Pistons Toyota 4AGE 16V Bore 81.5 Oversize 0.50 Dome Volume 2.7 (Set of 4)

SKU: 361471 Piston Series
JE Pistons
Cylinder Head
4AGE
Bore Diameter
81.50 MM
Piston Head Type
Dome
Compression Height
1.201 IN
Piston Volume
2.70 CC
Piston Material
2618
Piston Quantity
4
Forging Type
FSR
Piston Average Weight
291 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0400 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Outer Diameter
0.787 IN
Wrist Pin Length
2.050 IN
Wrist Pin Wall Thickness
0.140 IN
