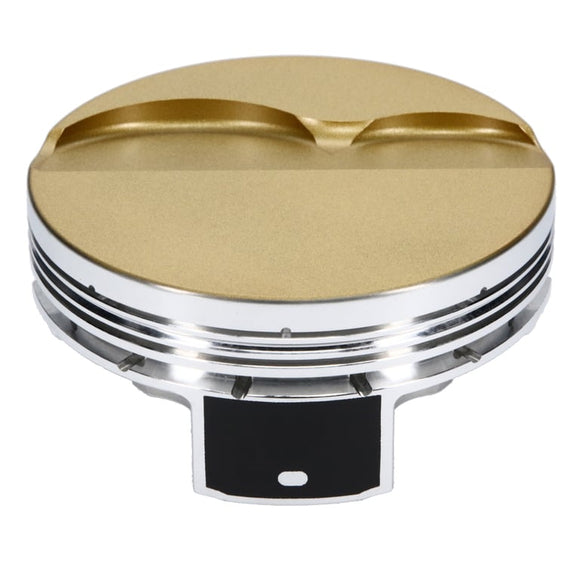

JE Pistons Ultra Series GM Gen III/IV LS 4.135in Bore/4in Stroke Set of 8 Pistons

SKU: 361721 Piston Series
JE Ultra Series
Cylinder Head
LS 12 DEG/15 DEG COMBO VR
Bore Diameter
4.135 IN
Piston Head Type
Flat
Compression Height
1.115 IN
Piston Volume
-5.00 CC
Piston Material
2618
Forging Type
FSR
Ring Set Included
No
Top Compression Ring Thickness
0.0475 IN
Second Compression Ring Thickness
0.0600 IN
Oil Ring Thickness
0.149 IN
Wrist Pin Included
Yes
Wrist Pin Part Number
927-2250-15-51C
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.200 IN
Wrist Pin Retainer Included
Yes
Ring Set Thickness
1.20 MM x 1.50 MM x 3.00 MM
