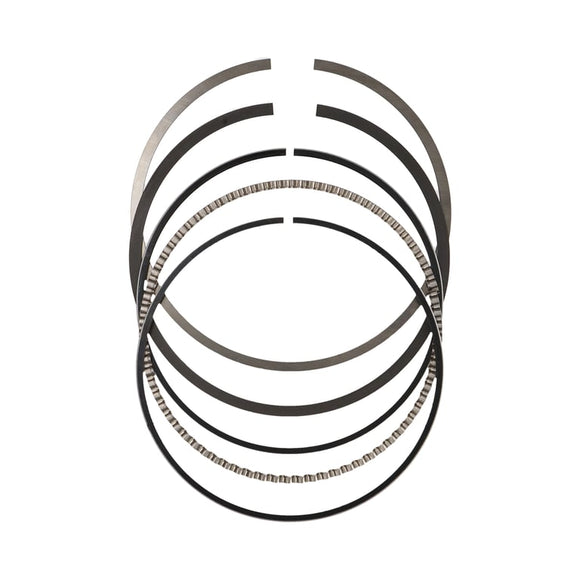

JE Pistons Ring Sets 1/16-1/16-3/16

SKU: J160F1-3635 Bore Diameter
3.635|92.33 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
1/16 IN
Top Ring Radial Width
0.170 IN
Top Compression Ring Thickness
0.0640 IN
Top Ring Facing Material
Plasma Moly
Top Ring Material
Ductile Iron
Top Ring Shape
Flat Face, Torsional
Second Ring Axial Height
1/16 IN
Second Ring Radial Width
0.170 IN
Second Compression Ring Thickness
0.0640 IN
Second Ring Facing Material
Phosphate
Second Ring Shape
Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height
3/16 IN
Oil Ring Radial Width
0.187 IN
Oil Ring Thickness
0.188 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
Full Seal, Flex Vent
Ring Set Thickness
0.0640 in. Top x 0.0640 in. 2nd x 0.188 in. Oil
