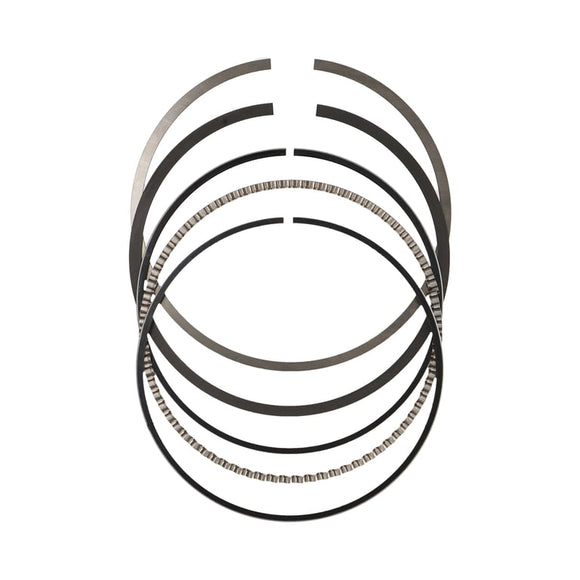

JE Pistons Ring Sets 1.5-1.75-3.0-10000

SKU: J660U6-3937 Bore Diameter
100.00|3.937 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
0.95 MM
Top Ring Radial Width
0.165 IN
Top Compression Ring Thickness
0.0591 IN
Top Ring Facing Material
Phosphate
Top Ring Material
Iron
Top Ring Shape
Taper Face, Back Cut, Neutral
Second Ring Axial Height
1.75 MM
Second Ring Radial Width
0.165 IN
Second Compression Ring Thickness
0.0689 IN
Second Ring Facing Material
Phosphate
Second Ring Shape
Napier, Back Cut, Neutral
Oil Ring Axial Height
3.00 MM
Oil Ring Radial Width
0.150 IN
Oil Ring Thickness
0.118 IN
Third Ring Facing Material
Iron
Third Ring Material
Iron
Third Ring Shape
2 Piece with Inner Spring, Double Bevel
Ring Set Thickness
0.0591 in. Top x 0.0689 in. 2nd x 0.118 in. Oil
