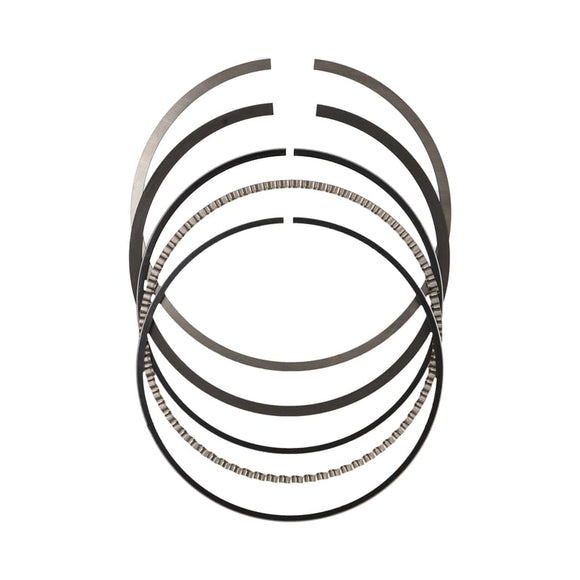

JE Pistons Ring Sets 1.2-1/16-3mm GOLDCUP

SKU: J950F8-4030-3 Bore Diameter
102.36|4.030 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
1.20 MM
Top Ring Radial Width
0.152 IN
Top Compression Ring Thickness
0.0472 IN
Top Ring Facing Material
Titanium Nitride
Top Ring Material
Stainless Steel
Top Ring Shape
Barrel Face, Back Cut, Neutral
Second Ring Axial Height
1/16 IN
Second Ring Radial Width
0.187 IN
Second Compression Ring Thickness
0.0640 IN
Second Ring Facing Material
Phosphate
Second Ring Shape
Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height
3.00 MM
Oil Ring Radial Width
0.146 IN
Oil Ring Thickness
0.118 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
Full Seal, Flex Vent
Ring Set Thickness
0.0472 in. Top x 0.0640 in. 2nd x 0.118 in. Oil
