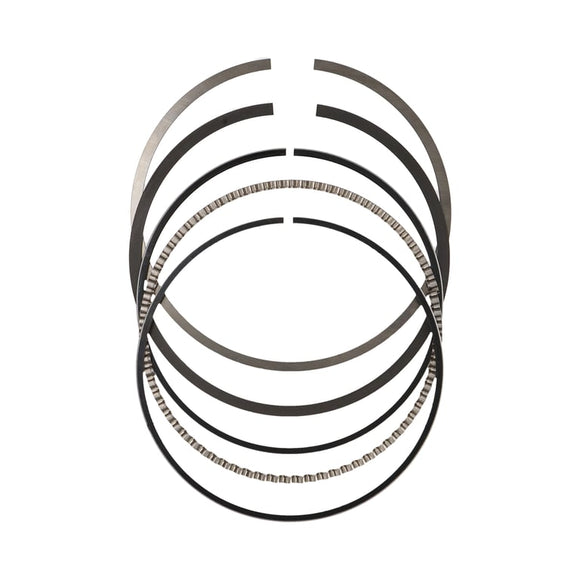

JE Pistons Ring Sets 1.5-1.5-4m-3.405

SKU: JC11F4-3405 Bore Diameter
3.405|86.49 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
1.50 MM
Top Ring Radial Width
0.153 IN
Top Compression Ring Thickness
0.0591 IN
Top Ring Facing Material
Chrome
Top Ring Material
Ductile Iron
Top Ring Shape
Barrel Face, D-wall, Neutral
Second Ring Axial Height
1.50 MM
Second Ring Radial Width
0.161 IN
Second Compression Ring Thickness
0.0591 IN
Second Ring Facing Material
Phosphate
Oil Ring Axial Height
4.00 MM
Oil Ring Radial Width
0.145 IN
Oil Ring Thickness
0.158 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
Full Seal, Flex Vent
Ring Set Thickness
0.0591 in. Top x 0.0591 in. 2nd x 0.158 in. Oil
