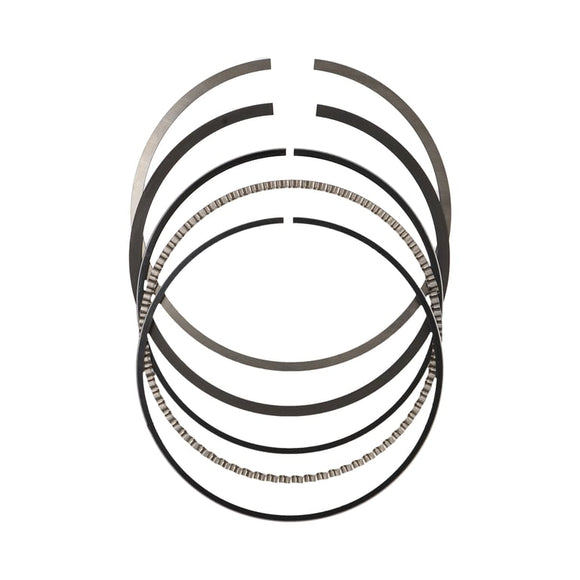

JE Pistons Ring Sets 1.0-1.2-2.8-78.00

SKU: JG1004-3071 Bore Diameter
3.071|78.00 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
0.80 MM
Top Ring Radial Width
0.110 IN
Top Compression Ring Thickness
0.0394 IN
Top Ring Facing Material
Nitride
Top Ring Material
Carbon Steel
Top Ring Shape
Barrel Face, Back Cut, Neutral
Second Ring Axial Height
1.20 MM
Second Ring Radial Width
0.130 IN
Second Compression Ring Thickness
0.0472 IN
Second Ring Facing Material
Phosphate
Second Ring Shape
Napier, Back Cut, Neutral
Oil Ring Axial Height
2.80 MM
Oil Ring Radial Width
0.128 IN
Oil Ring Thickness
0.110 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
Flex Vent
Ring Set Thickness
0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
