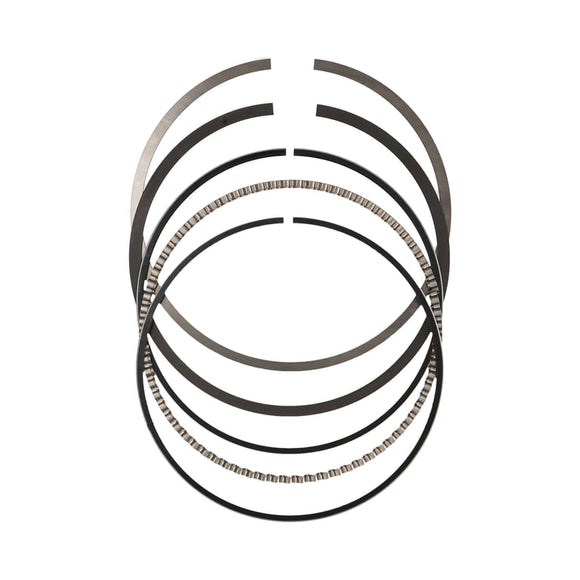

JE Pistons Ring Sets 1.5-1.5-3.0-99.18

SKU: JG6008-3905 Bore Diameter
3.905|99.19 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
0.95 MM
Top Ring Radial Width
0.142 IN
Top Compression Ring Thickness
0.0591 IN
Top Ring Facing Material
Nitride
Top Ring Material
Carbon Steel
Top Ring Shape
Barrel Face, Back Cut, Torsional
Second Ring Axial Height
1.50 MM
Second Ring Radial Width
0.158 IN
Second Compression Ring Thickness
0.0591 IN
Second Ring Facing Material
Phosphate
Second Ring Shape
Tapered Under Cut, Neutral
Oil Ring Axial Height
3.00 MM
Oil Ring Radial Width
0.150 IN
Oil Ring Thickness
0.118 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
Full Seal, Flex Vent
Ring Set Thickness
0.0591 in. Top x 0.0591 in. 2nd x 0.118 in. Oil
