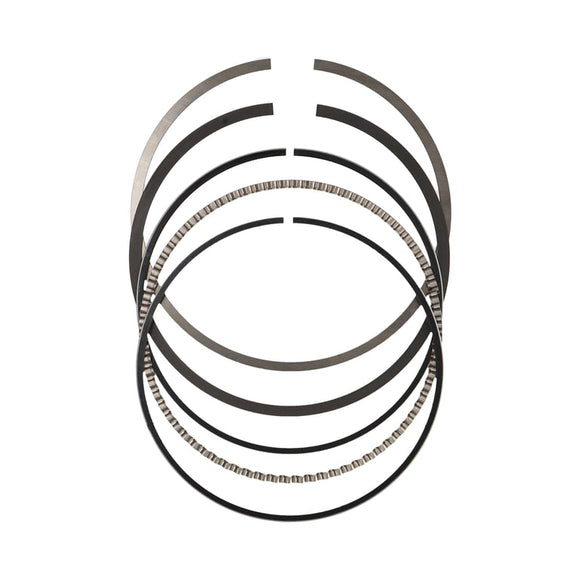

JE Pistons Ring Sets 1/16-1/16-3/16 ECONO

SKU: S100S8-4310-5 Bore Diameter
109.47|4.310 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
1/16 IN
Top Ring Radial Width
0.202 IN
Top Compression Ring Thickness
0.0640 IN
Top Ring Facing Material
Plasma Moly
Top Ring Material
Ductile Iron
Top Ring Shape
Barrel Face, D-wall, Torsional
Second Ring Axial Height
1/16 IN
Second Ring Radial Width
0.202 IN
Second Compression Ring Thickness
0.0640 IN
Second Ring Facing Material
Phosphate
Second Ring Shape
Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height
3/16 IN
Oil Ring Radial Width
0.205 IN
Oil Ring Thickness
0.188 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
Full Seal, Flex Vent
Ring Set Thickness
0.0640 in. Top x 0.0640 in. 2nd x 0.188 in. Oil
