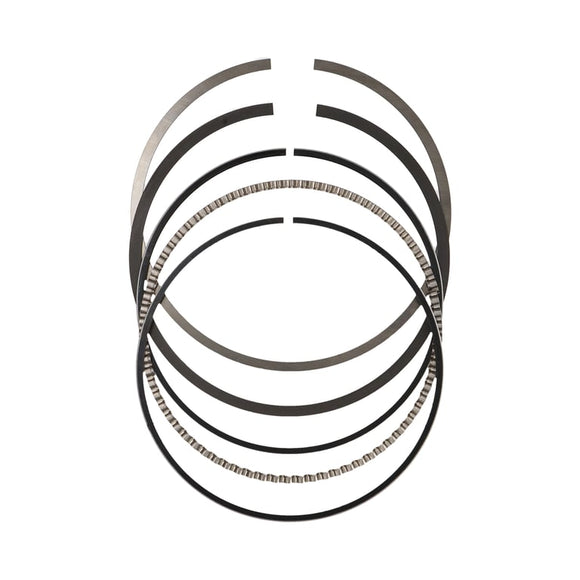

JE Pistons Ring Sets 1.0-1.0-2.0-3.268

SKU: XG8300 Bore Diameter
3.268|83.01 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
1.00 MM
Top Ring Radial Width
0.124 IN
Top Compression Ring Thickness
0.0394 IN
Top Ring Facing Material
Chrome
Top Ring Material
Carbon Steel
Top Ring Shape
Barrel Face, Back Cut, Neutral
Second Ring Axial Height
1.00 MM
Second Ring Radial Width
0.132 IN
Second Compression Ring Thickness
0.0394 IN
Second Ring Facing Material
Phosphate
Second Ring Shape
Taper Face, Back Cut, Neutral
Oil Ring Axial Height
2.00 MM
Oil Ring Radial Width
0.132 IN
Oil Ring Thickness
0.079 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
SS50U Style
Ring Set Thickness
0.0394 in. Top x 0.0394 in. 2nd x 0.079 in. Oil
