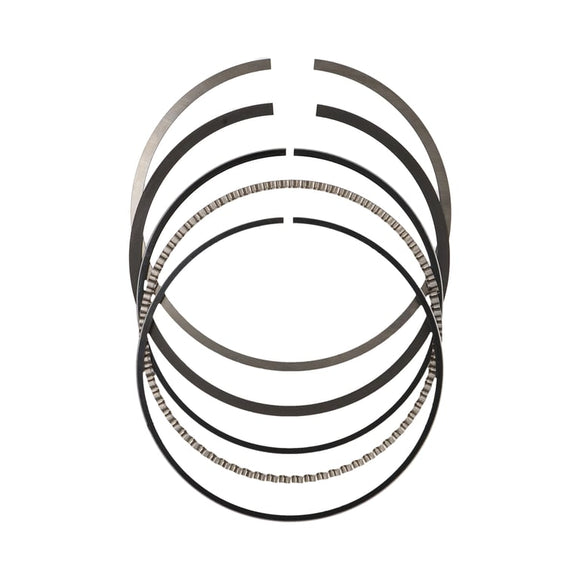

JE Pistons Ring Sets 1.5-1.5-2.5mm

SKU: XK3875 Bore Diameter
3.875|98.43 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
0.95 MM
Top Ring Radial Width
0.181 IN
Top Compression Ring Thickness
0.0591 IN
Top Ring Facing Material
Nitride
Top Ring Material
Carbon Steel
Top Ring Shape
Barrel Face, D-wall, Neutral
Second Ring Axial Height
1.50 MM
Second Ring Radial Width
0.181 IN
Second Compression Ring Thickness
0.0591 IN
Second Ring Facing Material
Phosphate
Second Ring Shape
Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height
2.50 MM
Oil Ring Radial Width
0.150 IN
Oil Ring Thickness
0.098 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
Full Seal, Flex Vent
Ring Set Thickness
0.0591 in. Top x 0.0591 in. 2nd x 0.098 in. Oil
