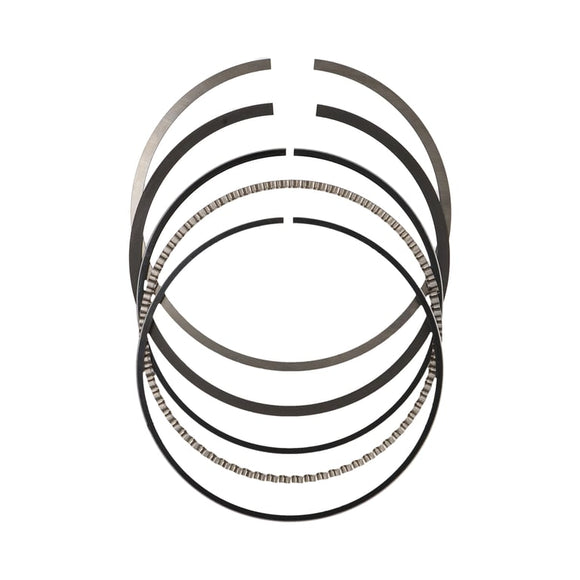

JE Pistons Ring Sets 0.9-0.8-1.5-3.031

SKU: XU7700 Bore Diameter
3.031|76.99 MM
Ring Type
3 Ring
File Fit
Yes
Top Ring Axial Height
0.80 MM
Top Ring Radial Width
0.108 IN
Top Compression Ring Thickness
0.0354 IN
Top Ring Facing Material
Chrome
Top Ring Material
Carbon Steel
Top Ring Shape
Barrel Face, Back Cut, Torsional
Second Ring Axial Height
0.80 MM
Second Ring Radial Width
0.110 IN
Second Compression Ring Thickness
0.0315 IN
Second Ring Facing Material
Chrome
Second Ring Shape
Taper Face, Back Cut, Neutral
Oil Ring Axial Height
1.50 MM
Oil Ring Radial Width
0.094 IN
Oil Ring Thickness
0.059 IN
Third Ring Facing Material
Carbon Steel
Third Ring Material
Carbon Steel
Third Ring Shape
Full Seal, Flex Vent
Ring Set Thickness
0.0354 in. Top x 0.0315 in. 2nd x 0.059 in. Oil
