Piston Set By JE - 84.5mm .50mm Oversize Bore | 9.5:1 CR | Stock Stroke 89.6mm - BMW N55/S55

Piston Set By JE - 84.5mm .50mm Oversize Bore | 9.5:1 CR | Stock Stroke 89.6mm - BMW N55/S55

$1,784.99 CAD

JE Pistons SKU: 338097

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

338097

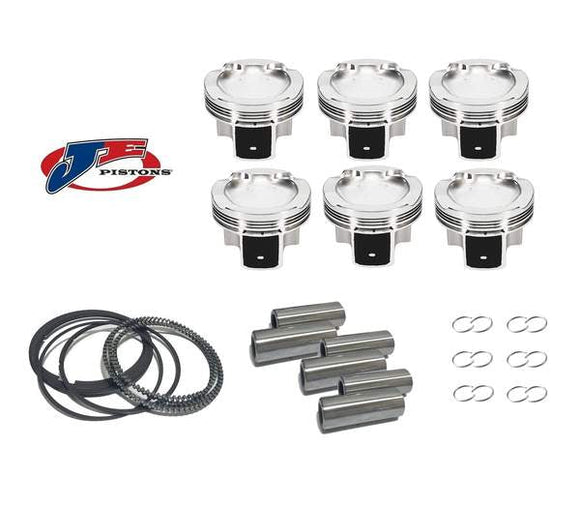

NOTE: Image shown not actual parts.


JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.


Bore (in) 3.327
Bore (mm) 84.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -14.70
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.866
Compression Height 1.275
Make BMW
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number JG1001-3327-AL
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 338097S
Piston Pin Inside Diameter 0.566
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 866-2250-15-51C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons


OE Part #'s:

11-25-8-619-196 / 11 25 8 619 196 / 11258619196

11-25-7-645-958 / 11 25 7 645 958 / 11257645958

    This Part Fits The Following Vehicles

    MAKE MODEL SUBMODEL ENGINE DRIVETRAIN
    BMW 1 Series E8X (2008-2013) 135i N55 3.0L
    BMW 2 Series F2X (2014+) M235i N55 3.0L
    BMW 2 Series F2X (2014+) M235i xDrive N55 3.0L
    BMW 2 Series F87 (2016+) M2 Competition S55 3.0L
    BMW 3 Series E9X (2006-2012) 335i N55 3.0L (2010-2012)
    BMW 3 Series F3X (2012-2019) 335i N55 3.0L
    BMW 3 Series F3X (2012-2019) 335i xDrive N55 3.0L
    BMW 3 Series F80 (2015-2018) M3 S55 3.0L
    BMW 4 Series F3X (2014+) 435i N55 3.0L
    BMW 4 Series F3X (2014+) 435i xDrive N55 3.0L
    BMW 4 Series F8X (2015+) M4 S55 3.0L
    BMW 5 Series E6X (2004-2010) 535i N55 3.0L (2010)
    BMW 5 Series F10 (2011-2016) 535i N55 3.0L
    BMW 5 Series F10 (2011-2016) 535i xDrive N55 3.0L
    BMW 6 Series F1X (2012-2018) 640i N55 3.0L
    BMW 6 Series F1X (2012-2018) 640i xDrive N55 3.0L
    BMW 7 Series F01/F02 (2009-2015) 740i N55 3.0L
    BMW X Series X1 E84 (2012-2015) xDrive35i N55 3.0L
    BMW X Series X3 F25 (2011-2017) xDrive 3.5i N55 3.0L
    BMW X Series X4 F26 (2015-2017) xDrive35i N55 3.0L
    BMW X Series X5 E70 (2007-2013) xDrive35i N55 3.0L
    BMW X Series X5 F15 (2014-2018) sDrive35i N55 3.0L
    BMW X Series X5 F15 (2014-2018) xDrive 35i N55 3.0L
    BMW X Series X6 E71 (2008-2014) xDrive35i N55 3.0L (2011+)
    BMW X Series X6 F16 (2015-2019) sDrive35i N55 3.0L
    BMW X Series X6 F16 (2015-2019) xDrive35i N55 3.0L
