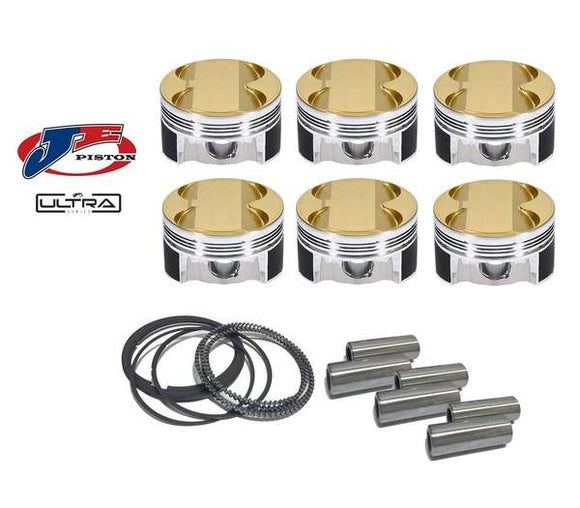

Ultra Series Piston Set By JE - 84.5mm .50mm Oversize Bore | 9.5:1 CR | Stock Stroke 89.6mm - BMW N55/S55

Ultra Series Piston Set By JE - 84.5mm .50mm Oversize Bore | 9.5:1 CR | Stock Stroke 89.6mm - BMW N55/S55

$1,914.99 CAD $2,029.33 CAD Save $114.34 CAD

JE Pistons SKU: JE-N55-BMW-367880

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

JE-N55-BMW-367880

NOTE: Image shown not actual parts.

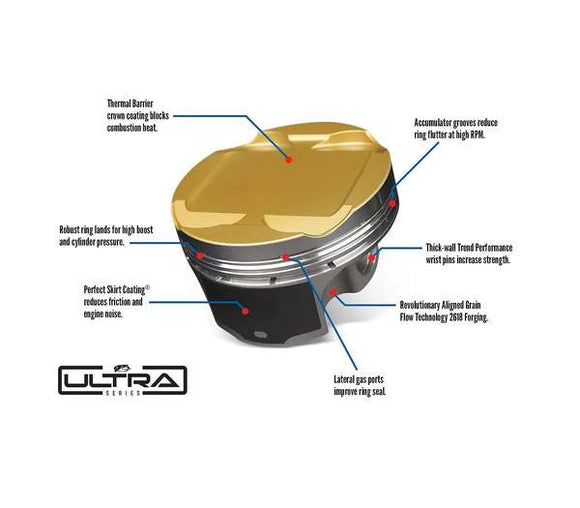

JE’s Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included


Bore (in) 3.307
Bore (mm) 84.
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -14.70
Series JE Ultra Series
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.866
Compression Height 1.275
Make BMW
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.230
Ringset Part Number JG1001-3307
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 367879S
Piston Pin Inside Diameter 0.406
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 337
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 866-2250-23-93C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.000
Brand JE Pistons


OE Part #'s:

11-25-8-619-196 / 11 25 8 619 196 / 11258619196

11-25-7-645-958 / 11 25 7 645 958 / 11257645958

This Part Fits The Following Vehicles

MAKE MODEL SUBMODEL ENGINE DRIVETRAIN
BMW 1 Series E8X (2008-2013) 135i N55 3.0L
BMW 2 Series F2X (2014+) M235i N55 3.0L
BMW 2 Series F2X (2014+) M235i xDrive N55 3.0L
BMW 2 Series F87 (2016+) M2 Competition S55 3.0L
BMW 3 Series E9X (2006-2012) 335i N55 3.0L (2010-2012)
BMW 3 Series F3X (2012-2019) 335i N55 3.0L
BMW 3 Series F3X (2012-2019) 335i xDrive N55 3.0L
BMW 3 Series F80 (2015-2018) M3 S55 3.0L
BMW 4 Series F3X (2014+) 435i N55 3.0L
BMW 4 Series F3X (2014+) 435i xDrive N55 3.0L
BMW 4 Series F8X (2015+) M4 S55 3.0L
BMW 5 Series E6X (2004-2010) 535i N55 3.0L (2010)
BMW 5 Series F10 (2011-2016) 535i N55 3.0L
BMW 5 Series F10 (2011-2016) 535i xDrive N55 3.0L
BMW 6 Series F1X (2012-2018) 640i N55 3.0L
BMW 6 Series F1X (2012-2018) 640i xDrive N55 3.0L
BMW 7 Series F01/F02 (2009-2015) 740i N55 3.0L
BMW X Series X1 E84 (2012-2015) xDrive35i N55 3.0L
BMW X Series X3 F25 (2011-2017) xDrive 3.5i N55 3.0L
BMW X Series X4 F26 (2015-2017) xDrive35i N55 3.0L
BMW X Series X5 E70 (2007-2013) xDrive35i N55 3.0L
BMW X Series X5 F15 (2014-2018) sDrive35i N55 3.0L
BMW X Series X5 F15 (2014-2018) xDrive 35i N55 3.0L
BMW X Series X6 E71 (2008-2014) xDrive35i N55 3.0L (2011+)
BMW X Series X6 F16 (2015-2019) sDrive35i N55 3.0L
BMW X Series X6 F16 (2015-2019) xDrive35i N55 3.0L
